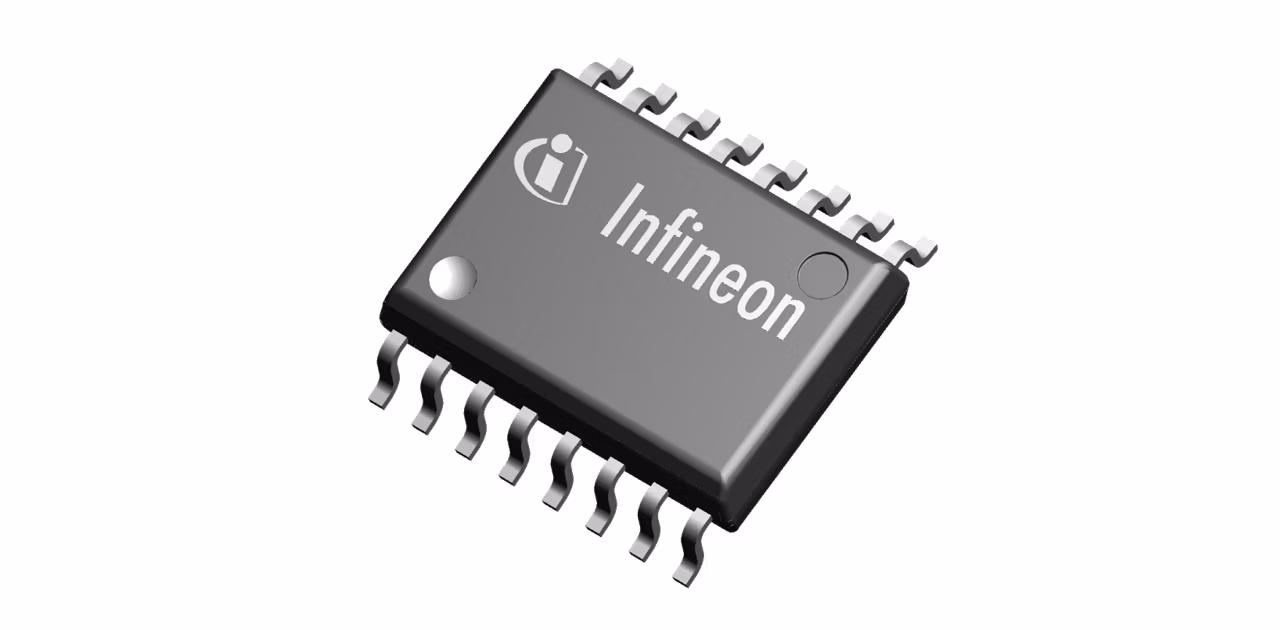

2EDS7165H
  • 2EDS7165H

2EDS7165H

Active

The EiceDRIVER™ 2EDS7165H is a reinforced isolated gate driverfor secondary-side control over the mandatory safe isolation barrier in SMPS. The strong 4A/8A source/sink dual-channel gate driver comes with a very high 150V/ns CMTI (Common Mode Transient Immunity) for robust operation with fast CoolMOS™ and high power switching noise environment.

Infineon Technologies 2EDS7165H Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

High-side and low-side, High-side, Half-Bridge

Input Vcc range

3 V to 3.3 V

Input-side supply

20 V

Isolation Type

Galvanic isolation - Reinforced

Output Current (Source)

1 A

Output Current (Sink)

2 A

Qualification

Industrial

Turn Off Propagation Delay

35 ns

Turn On Propagation Delay

37 ns

VBS UVLO (On)

8 V

VCC UVLO (On)

2.85 V

Voltage Class

650 V

Apps

Battery energy storage (BESS), Microinverter solutions

Features

  • Fast switching with accurate timing
  • Optimized for area and system BOM
  • Robust against switching noise
  • Output- to-output channel isolation
  • Input-to-output channel isolation

Description

  • Efficiency gain and lower losses
  • Protection and safe operation
  • Flexible configurations
  • Regulatory safety
