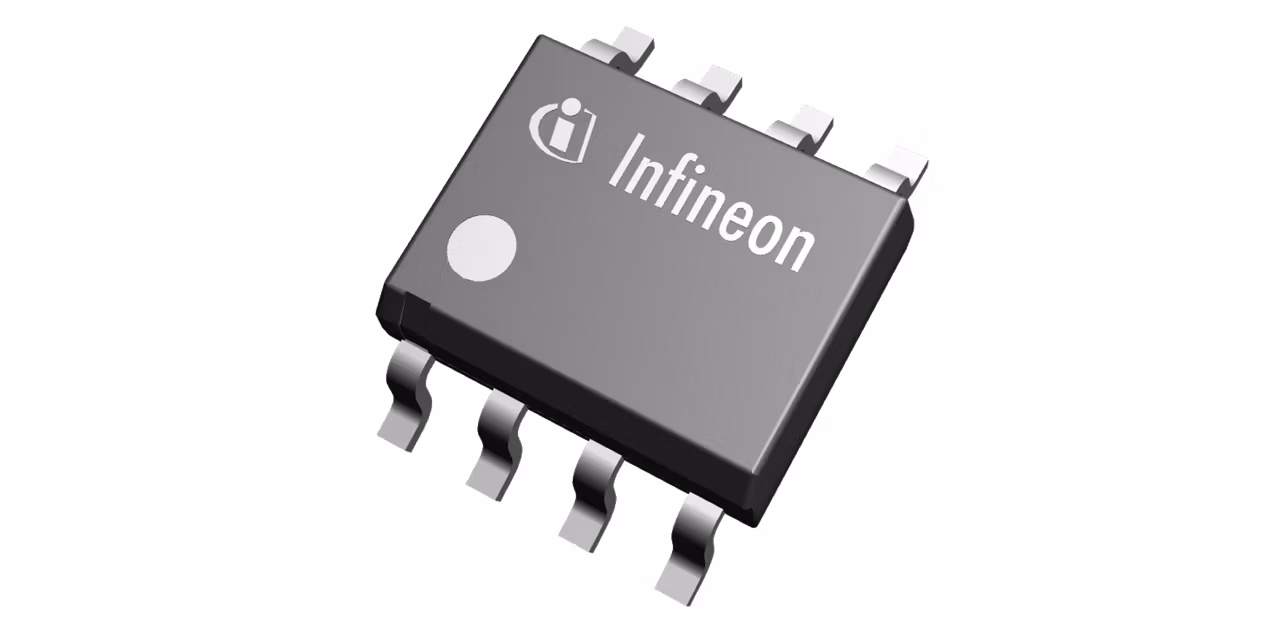

2EDN7524F
  • 2EDN7524F

2EDN7524F

The gate driver accepts low voltage TTL and 3.3V CMOS signals with a wide voltage handling range of +20V to -10VDC, protecting against ground bouncing. Each output can sink/source 5A with low impedances. Channel delay matching of 1ns allows doubling of current up to 10A through channel paralleling. Available in three package options for flexibility and improved thermal performance.

Infineon Technologies 2EDN7524F Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.32

Channels

2

Configuration

Low-side

Input Vcc range

4.2 V to 20 V

Isolation Type

Non-isolated

Output Current (Source)

5 A

Output Current (Sink)

5 A

Package

PG-DSO-8

Product Name

2EDN7524F

Qualification

Industrial

Turn Off Propagation Delay

19 ns

Turn On Propagation Delay

17 ns

VBS UVLO (Off)

3.9 V

VBS UVLO (On)

4.2 V

Voltage Class

20 V

Apps

Medium voltage IBC (48 V), Edge computing, Battery energy storage (BESS), DIN rail power supply solutions, Uninterruptible power supplies (UPS)

Features

  • 5A peak source/sink current
  • 5ns (typ.) rise/fall times
  • < 10ns propagation delay tolerance
  • 8V UVLO option
  • Propagation delay for both & for enable
  • -10V control and enable inputrobustness
  • Outputs robust against reverse current
  • 2 independent channels
  • < 1ns channel-to-channel miss-match
  • Industry standard pin-out and packages

Description

  • Fast Miller plateau transition
  • Fast and reliable MOSFET turn-off
  • Saves switching diodes
  • Boost drive I by concurr't switching 2ch
  • Straight-forward design up-grades
