2EDL05N06PF

Active and preferred

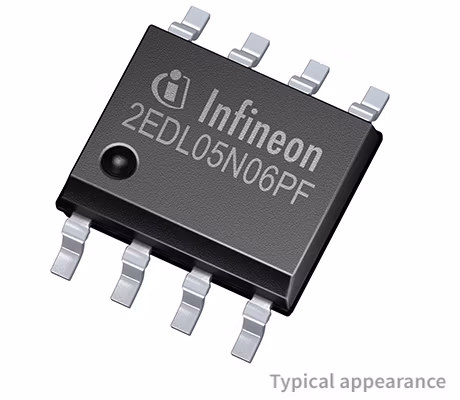

EiceDRIVER™ Compact - Optimized 600V half bridge gate driver IC with LS-SOI technology to control MOS-transistors

Infineon Technologies 2EDL05N06PF Product Info

16 April 2026 1

Parameters

Channels	2
Configuration	Half-Bridge
Input Vcc range	10 V to 17.5 V
Isolation Type	Functional levelshift SOI (Silicon On Insulator)
Output Current (Sink)	0.7 A
Output Current (Source)	0.36 A
Product Name	2EDL05N06PF
Qualification	Industrial
Turn Off Propagation Delay	300 ns
Turn On Propagation Delay	310 ns
VBS UVLO (On)	9.1 V
VBS UVLO (Off)	8.3 V
VCC UVLO (On)	9.1 V
VCC UVLO (Off)	8.3 V
Voltage Class	600 V

Apps

Medium voltage IBC (48 V), Light electric vehicle solutions, Multicopters and drones, Power tools, Cordless power tools and outdoor power equipment, Health and lifestyle, Vacuum cleaners, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

Individual control circuits
Undervoltage supply detect. filter
All inputs clamped by diodes
Off line gate clamping function
Asym. undervolt. lockout thresholds
Insensitivity of the bridge output
Ultra fast bootstrap diode
