1EDN7146G
  • 1EDN7146G

1EDN7146G

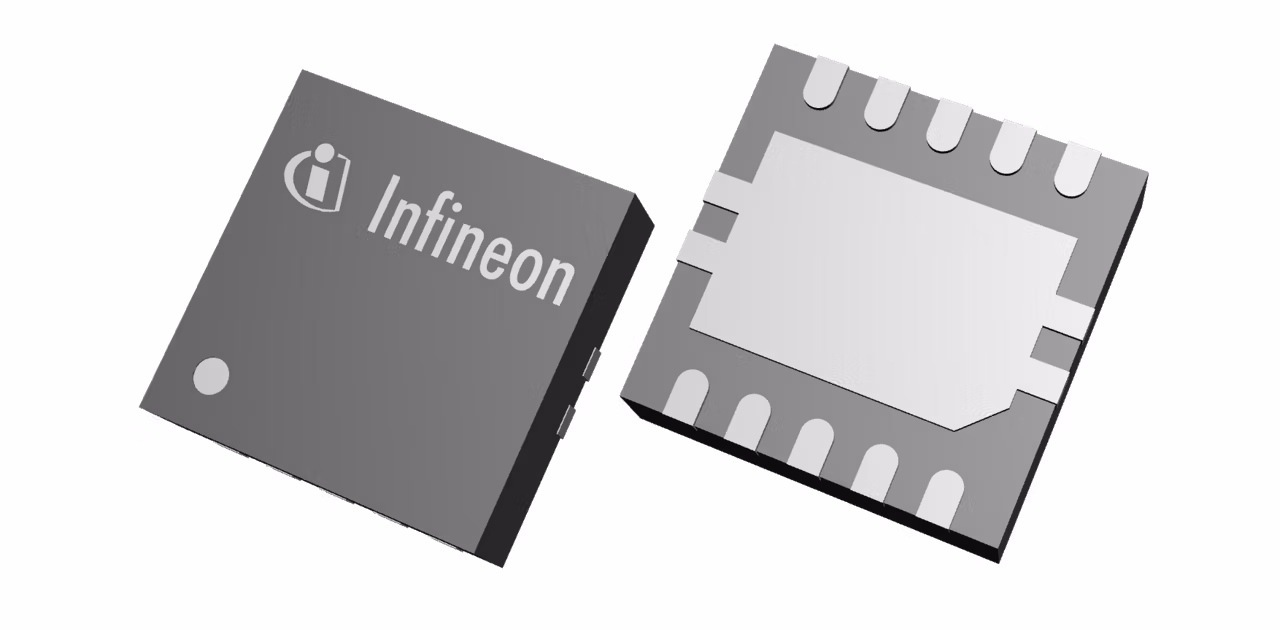

The EiceDRIVER™ 1EDN7146G is a single-channel gate-driver IC optimized for driving Infineon CoolGaN™ Schottky gate (SG) HEMTs, as well as other GaN SG HEMTs and Si MOSFETs. This gate driver includes several key features that enable a high-performance system design with fast-switching transistors, including Truly Differential Input (TDI), 0.5 A peak source and sink current, active Miller clamp, adjustable charge pump, and bootstrap voltage clamp.

Infineon Technologies 1EDN7146G Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Isolation Type

Non-isolated

Output Current

0.5 A

Output Current (Sink)

0.5 A

Output Current (Source)

0.5 A

Package

PG-VSON-10

Qualification

Industrial

Turn Off Propagation Delay

125 ns

Turn On Propagation Delay

125 ns

Voltage Class

200 V

Features

  • 52mW idle power and >80% eff @2W 8Ω
  • Inductor-less output filtering
  • Excellent EMI performance
  • 0.03% low THD+N, 52μVrms AW noise
  • 2x BTL, 1x PBTL
  • Configurable DSP flows
