1EDN7116G
  • 1EDN7116G

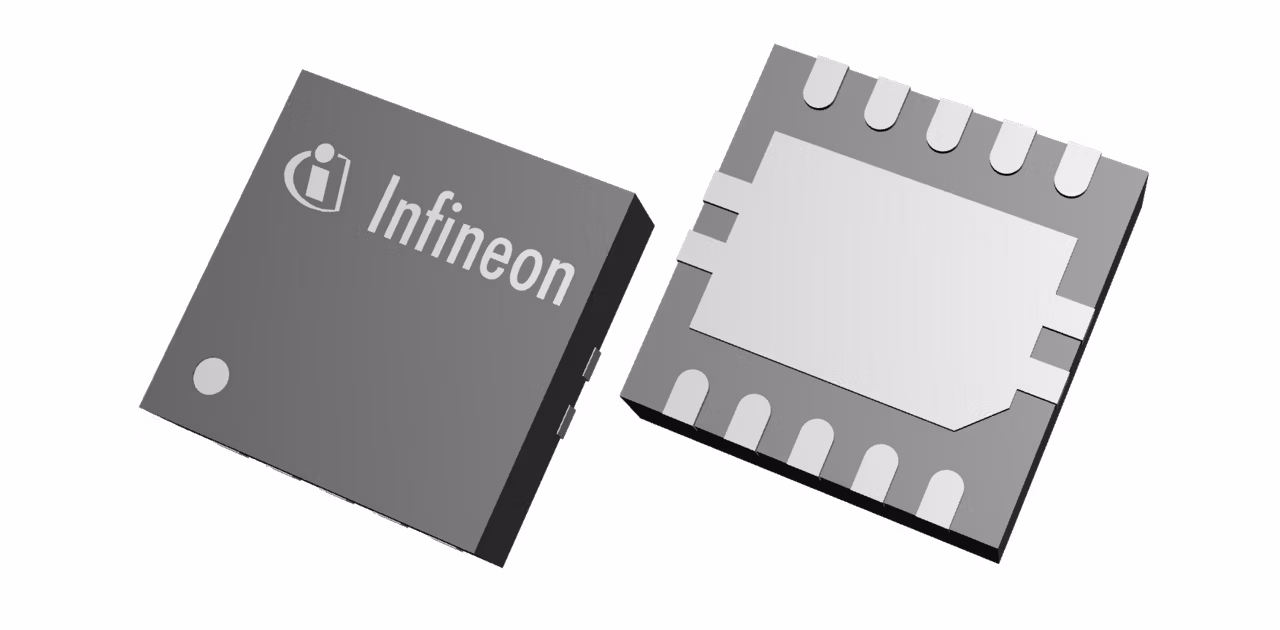

1EDN7116G

Active and preferred

The EiceDRIVER™ 1EDN7116G is a single-channel gate-driver IC optimized for driving Infineon CoolGaN™ Schottky gate (SG) HEMTs, as well as other GaN SG HEMTs and Si MOSFETs. This gate driver includes several key features that enable a high-performance system design with fast-switching transistors, including Truly Differential Input (TDI), 2 A peak source and sink current, active Miller clamp, adjustable charge pump, and bootstrap voltage clamp.

Infineon Technologies 1EDN7116G Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Isolation Type

Non-isolated

Output Current

2 A

Output Current (Sink)

2 A

Output Current (Source)

2 A

Package

PG-VSON-10

Qualification

Industrial

Turn Off Propagation Delay

55 ns

Turn On Propagation Delay

55 ns

Voltage Class

200 V

Apps

Telecommunications infrastructure

Features

  • Multi-level switching technology
  • 2×80W peak output power
  • +4V to +26V PVDD
  • 2.0, 2.1, 4.0, 1.0 configurations
  • 4th order feedback error control
  • 160mW Idle power dissipation
  • 80% efficiency at 2W power
  • 91% efficiency at full Power
  • 110dB SNR, AW, 1% THD+N level
  • 140µV output integrated noise (A-w)
  • 0.007% THD+N at high output levels
  • I2C with selectable addresses
