1EDN6550B
  • 1EDN6550B

1EDN6550B

Active and preferred

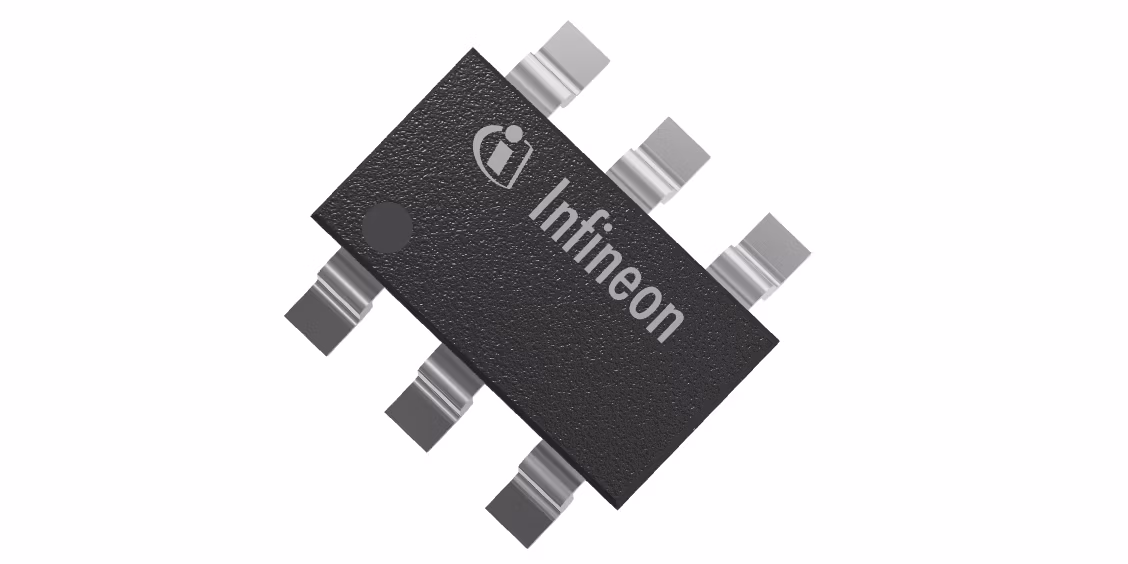

The 1EDN6550B is a non-isolated gate-driver IC and available in a small SOT-23 package. It has truly differential inputs enabling cost-effective solutions with exceptional power density in:Boost-PFC with Kelvin-source MOSFETsSynchronous rectification stagesDesigns with long distance between control IC and gate-driver ICBuck-boost convertersLow- and medium-voltage half-bridgesHigh density 48V to 12V intermediate bus converter

Infineon Technologies 1EDN6550B Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

Low-side, High-side

Input Vcc range

12.2 V to 20 V

Isolation Type

Non-isolated

Output Current (Sink)

8 A

Output Current (Source)

4 A

Qualification

Industrial

Turn Off Propagation Delay

45 ns

Turn On Propagation Delay

45 ns

VBS UVLO (Off)

11.5 V

VBS UVLO (On)

12.2 V

Voltage Class

200 V

Apps

Cordless power tools and outdoor power equipment, General purpose motor drive, LED lighting system design

Features

  • Truly differential inputs
  • 4A source current
  • 8A sink current
  • Separate source/sink outputs
  • Low-ohmic output stage
  • 29ns input minimum pulse width
  • 5A reverse current robustness of the o/p
  • 12V UVLO version
  • SOT-23 package, 6 pins

Description

  • Robust
  • PCB layout flexibility
  • High power density
  • Short time to market
