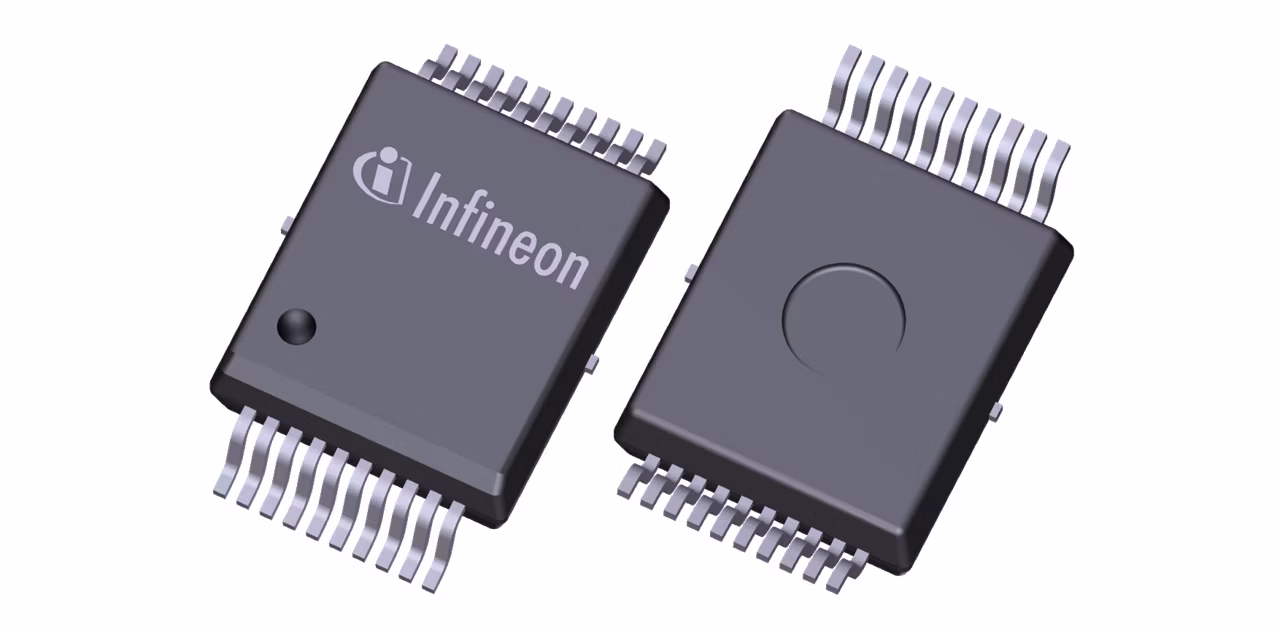

1EDI3031AS
  • 1EDI3031AS

1EDI3031AS

Active

The EiceDRIVER™ 1EDI3031AS uses Infineon's Coreless Transformer Technology for bi-directional signal transfer across galvanic isolation. Safety features and ISO 26262-compliance enable ASIL D classification. Safety documents aid FMEDA analysis. Compact design and feature integration save space and cost. Pin-compatible variants facilitate switching between SiC MOSFET and IGBT for different application needs.

Infineon Technologies 1EDI3031AS Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side, High-side

Family

EiceDRIVER™ isolated gate driver ICs for EV

Input Vcc range

3 V to 5.5 V

Isolation Type

Galvanic isolation - Reinforced

Output Current (Source)

20 A

Output Current (Sink)

20 A

Package

PG-DSO-20

Qualification

Automotive

Turn Off Propagation Delay

60 ns

Turn On Propagation Delay

60 ns

Voltage Class

1200 V

Apps

Electric vehicle drivetrain system, EV traction inverter, Fuel-cell control unit (FCCU)

Features

  • Single-chan. isolated SiC MOSFET driver
  • For SiC MOSFET up to 1200 V
  • High CMTI up to 150 V/ns
  • 8 kV basic insulation
  • 6.8 kV reinforced insulatio
  • Basic and reinforced insulation
  • Propagation delay 60 ns typical
  • Supporting unipolar switching
  • ASC pin for PMSM motor drive application
  • Supporting ASIL B(D)
  • Advanced driver diagnosis

Description

  • Easy to use pre-configs, no programming
  • Pin compat = easy switch bn variants
  • ASIL D by safety feat & ISO26262 compl
  • Reduced BoM & PCB space, compact design
