1EDI3026AS
  • 1EDI3026AS

1EDI3026AS

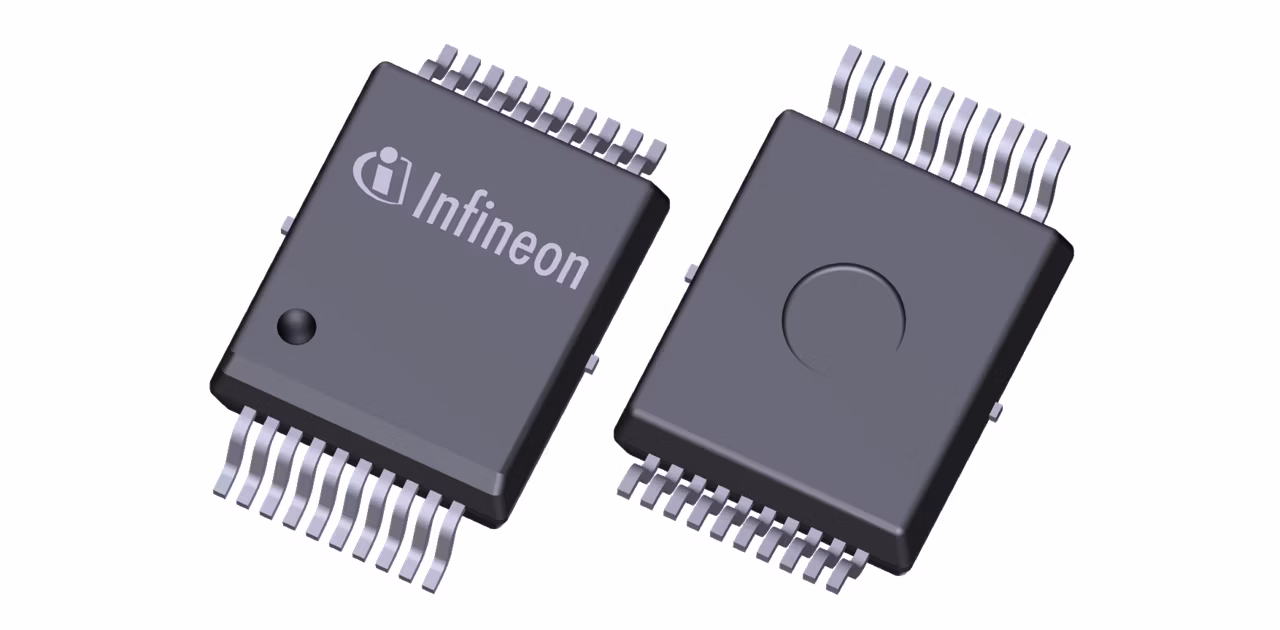

The EiceDRIVER™ gate driver 1EDI3026AS is a high-voltage IGBT driver for automotive applications, offering 8 kV galvanic insulation with coreless transformer (CT) technology. It provides a powerful output stage with up to 20 A peak current for high power switches. It features a split output stage for different slew rates during switching on and off, achieved by separate gate resistors, and OCP protection.

Infineon Technologies 1EDI3026AS Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Family

EiceDRIVER™ isolated gate driver ICs for EV

Input Vcc range

3 V to 5.5 V

Isolation Type

Galvanic isolation - Reinforced

Output Current (Sink)

20 A

Output Current (Source)

20 A, 20 A

Package

PG-DSO-20

Qualification

Automotive

Turn Off Propagation Delay

60 ns

Turn On Propagation Delay

60 ns

Voltage Class

1200 V

Features

  • For IGBTs of voltage class up to 1200
  • CMTI up to 150 V/ns
  • 8 kV peak reinforc. insulation (DIN VDE)
  • Integrated booster (up to 20 A peak)
  • Integrated active Miller clamp
  • 12-bit ADC
  • Split outputs TON and TOFF
  • OCP protection
  • Config. ext. soft turn-off functionality
  • Safety inputs on both side
  • ISO 26262 SEooC (saf. req. up to ASIL B)

Description

  • Pre-config. to drive latest IGBT techn.
  • Safety doc. aids system safety design
  • Comprehensive safety features
  • Supports ASIL D on system level
  • AEC-Q100 qualified
  • Lean packaging (DSO-20)
