1EDC20I12AH
  • 1EDC20I12AH

1EDC20I12AH

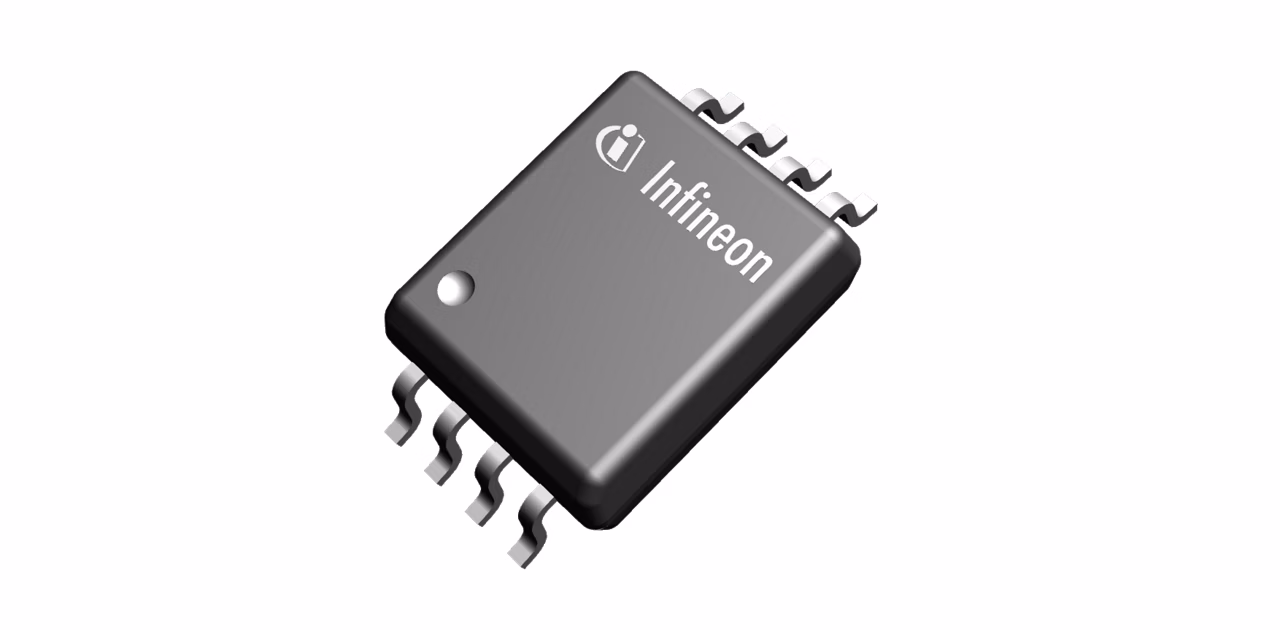

EiceDRIVER™ 1200 V high side Gate Driver IC with typical 4.0 A source and 3.5 A sink currents in a PG-DSO-8 package with CT technology for 600V/1200V IGBT Modules .For higher isolation rating, higher current, shorter propagation delay, check out our X3 Compact family , 1ED3120MU12H . The DSO-8 150 mil narrow body version with great price performance ratio is also available: 1EDI20I12AF

Infineon Technologies 1EDC20I12AH Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Source)

4 A

Output Current (Sink)

3.5 A

PDout

400 mW

Qualification

Industrial

RDSON_H(max)

4.3 Ω

RDSON_H(typ)

2.25 Ω

RDSON_L (max)

5 Ω

RDSON_L(typ)

2.25 Ω

RthJA

165 K/W

Turn Off Propagation Delay

300 ns

Turn On Propagation Delay

300 ns

VBS UVLO (On)

12 V

VBS UVLO (Off)

11.1 V

VCC UVLO (Off)

2.75 V

VCC UVLO (On)

2.85 V

Voltage Class

1200 V

Apps

Battery energy storage (BESS), EV charging, Heating ventilation and air conditioning (HVAC), Uninterruptible power supplies (UPS)

Features

  • Recognized under UL1577
  • With VISO= 3000 V for 1 s
  • 1200V coreless Transformer
  • 2 A rail-to-rail outputs
  • 300 mil wide-body package
  • 8 mm creepage distance
  • Separate source/sink outputs
