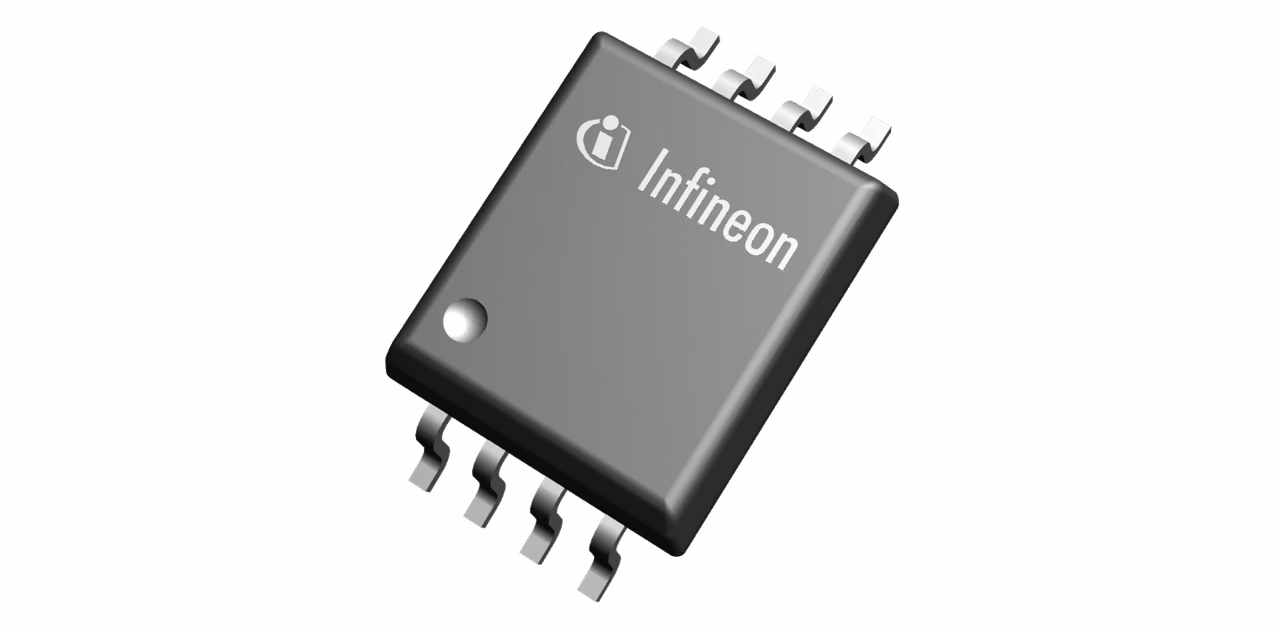

1ED3131MU12H
  • 1ED3131MU12H

1ED3131MU12H

Active

EiceDRIVER™ Compact single-channel isolated gate driver with 5.5 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It offers separate sink and source output, 180 ns input filter, accurate and stable timing, active shutdown and short-circuit clamping to limit the gate voltage during short circuit.

Infineon Technologies 1ED3131MU12H Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Sink)

5.5 A

Output Current (Source)

5.5 A

Package

PG-DSO-8

PDout

700 mW

Product Name

1ED3131MU12H

Qualification

Industrial

RDSON_H(max)

1.45 Ω

RDSON_H(typ)

0.95 Ω

RDSON_L (max)

1.05 Ω

RDSON_L(typ)

0.75 Ω

RthJA

88 K/W

Turn Off Propagation Delay

280 ns

Turn On Propagation Delay

280 ns

VBS UVLO (On)

12.5 V

VBS UVLO (Off)

10.5 V

VCC UVLO (On)

3.1 V

VCC UVLO (Off)

2.5 V

Voltage Class

2300 V

Apps

Server power supply units (PSU), EV charging, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

  • Single channel isolated gate driver
  • For up to 2300 V Si & SiC switches
  • 2300 V funct. offset volt. capable
  • Galv. isolated coreless transformer
  • 5.5 A typ sink & source peak output
  • 40 V absolute max. output voltage
  • 280 ns propagation delay
  • High CMTI >200 kV/μs
  • Separate source and sink outputs
  • Short-circuit clamping
  • DSO-8 300 mil wide-body package
  • UVLO protection with hysteresis
