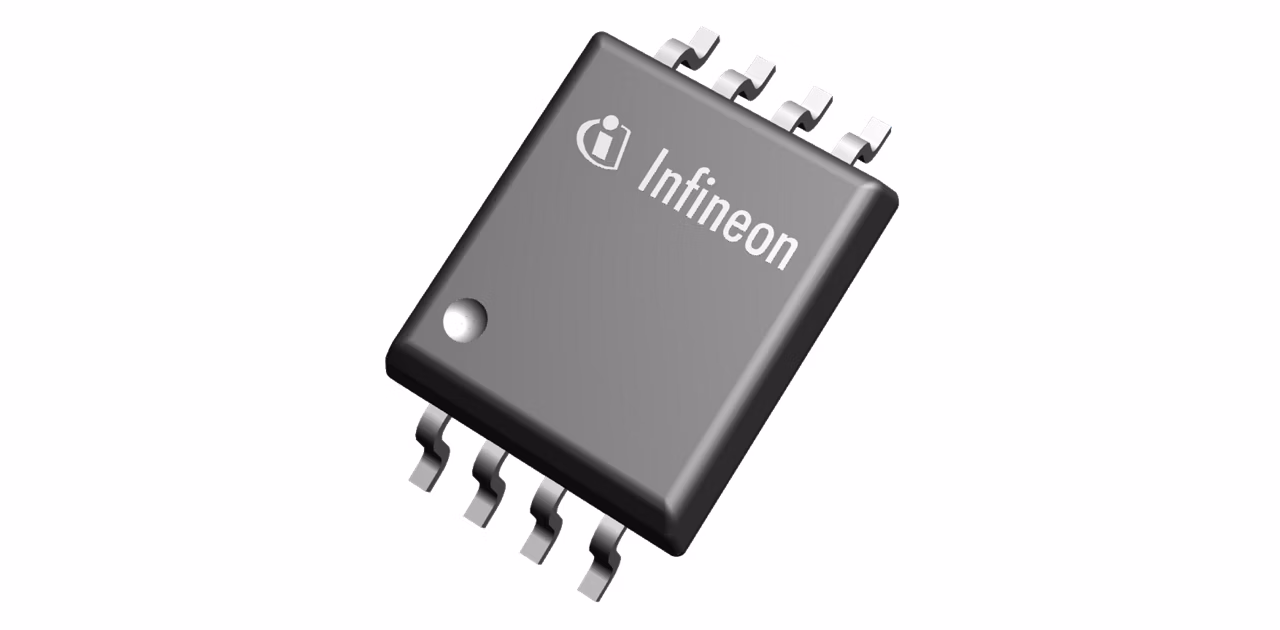

1ED3131MC12H

Active

EiceDRIVER™ Compact single-channel isolated gate driver with 5.5 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It offers separate sink and source output, accurate and stable timing, active shutdown and short-circuit clamping. The driver can operate over a wide supply voltage range, either unipolar or bipolar.

Infineon Technologies 1ED3131MC12H Product Info

16 April 2026 0

Parameters

Channels	1
Configuration	High-side
Input Vcc range	3.1 V to 17 V
Isolation Type	Galvanic isolation - Reinforced
Output Current (Sink)	5.5 A
Output Current (Source)	5.5 A
Package	PG-DSO-8
PDout	700 mW
Product Name	1ED3131MC12H
Qualification	Industrial
RDSON_H(max)	1.45 Ω
RDSON_H(typ)	0.95 Ω
RDSON_L (max)	1.05 Ω
RDSON_L(typ)	0.75 Ω
RthJA	88 K/W
Turn Off Propagation Delay	280 ns
Turn On Propagation Delay	280 ns
VBS UVLO (On)	12.5 V
VBS UVLO (Off)	10.5 V
VCC UVLO (On)	3.1 V
VCC UVLO (Off)	2.5 V
Voltage Class	2300 V

Apps

Server power supply units (PSU), Automotive electric pumps & fans 12 V, EV charging, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

Single channel isolated gate driver
For up to 2300 V Si & SiC switches
2300 V funct. offset volt. capable
Galv. isolated coreless transformer
5.5 A typ sink & source peak output
40 V absolute max. output voltage
90 ns propagation delay
High CMTI >200 kV/μs
Separate source and sink outputs
Short-circuit clamping
DSO-8 300 mil wide-body package
UVLO protection with hysteresis
