QSH8618
  • QSH8618

QSH8618

RECOMMENDED FOR NEW DESIGNS

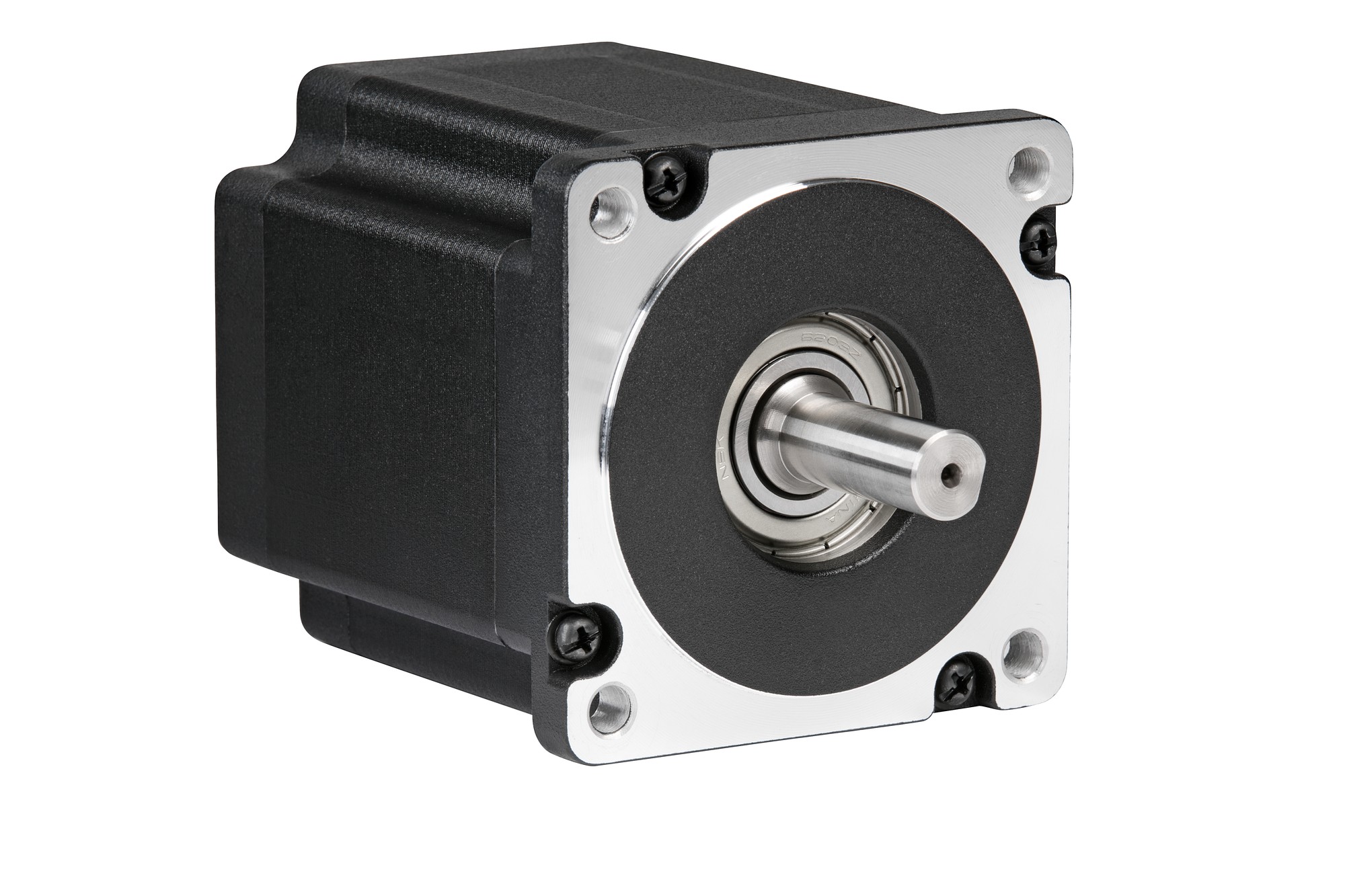

NEMA 34 stepper motor 7Nm, 5.5A

Analog Devices QSH8618 Product Info

10 February 2026 5

Features

  • NEMA 34 mounting configuration
  • Flange max. 85.85mm * 85.85mm
  • Step angle: 1.8˚
  • Optimum fit for TMC239/TMC249 based driver circuits, e.g. TMCM-078
  • Optimized for microstep operation
  • Neodymium magnets for maximal torque
  • 4 Wire connection
  • CE approved
  • Variants with encoder: 1024 lines/ 4096 counts

Part details & applications

NEMA34 (86mm) 2-phase stepper motor optimized for microstepping and give a good fit to the TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.
