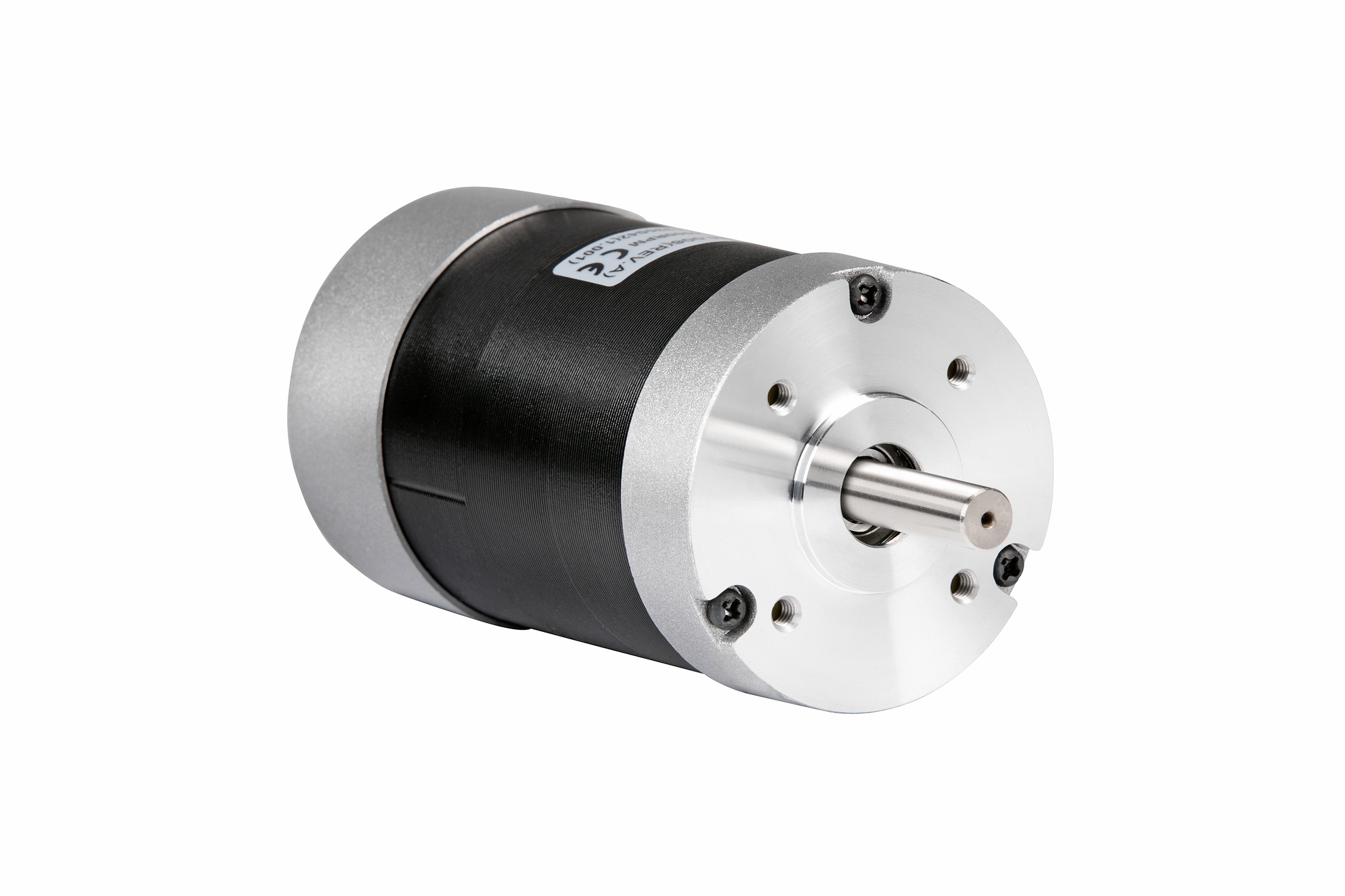

QBL5704
  • QBL5704

QBL5704

RECOMMENDED FOR NEW DESIGNS

NEMA 23 BLDC motor 32Ncm, 4 poles, 4000RPM

Analog Devices QBL5704 Product Info

10 February 2026 7

Features

  • Hall Effect Angle: 120° electric angle
  • Shaft run out: 0,025 mm
  • Insulation Class: B
  • Radial Play: 0,02 mm 450G load
  • Max Radial Force: 75N (10mm from flange)
  • Max Axial Force: 15N
  • Dielectric Strength: 500 VDC For One Minute
  • Insulation Resistance: 100M Ohm min. 500VDC
  • Recommended Ambient Temp.: -20 to +40°C
  • Bearing: Brushless motors fitted with ball bearings

Part details & applications

Qmot 42mm 3-phase BDLC motors are quality motors with digital hall output for universal use. They feature a long life due to ball bearings and no wearing out parts. These BLDC motors give a good fit to the ADI Trinamic family of medium and high current BLDC motor modules.
