PD-1141

PRODUCTION

NEMA 17 smart stepper motor 9 to 28V, 22Ncm, 256 µSteps, with USB andRS485 interface, SensOstep, StallGuard2 and CoolStep

Analog Devices PD-1141 Product Info

10 February 2026 6

Features

Motion controller

Motion profile calculation in real-time
On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
High performance microcontroller for overall system control and serial communication protocol handling

Bipolar stepper motor driver

Up to 256 microsteps per full step
High-efficient operation, low power dissipation
Dynamic current control
Integrated protection
StallGuard2^™ feature for stall detection
CoolStep^™ feature for reduced power consumption and heat dissipation
Ready for dcStep

Software

TMCL: standalone operation or remote controlled operation, program memory (non volatile) for up to 1024 TMCL commands, and PC-based application development software TMCL-IDE available for free.

Interfaces

RS485 2-wire communication interface
USB full speed (12Mbit/s) device interface
Step/Direction/Enable interface (optically isolated) for external control of driver circuit
4 multipurpose inputs:
- 3x general-purpose digital inputs
  (Alternate functions: STOP_L / STOP_R / HOME switch inputs)
- 1x dedicated analog input
2 general purpose outputs
- 2x open-drain 100 mA max

Electrical and mechanical data

Supply voltage: +24 V DC nominal (9 to 28 V DC)
Motor current: up to 1.1 A RMS / 1.7 A peak (programmable)
0.2 to 0.49 Nm max. holding torque (depends on motor)

Part details & applications

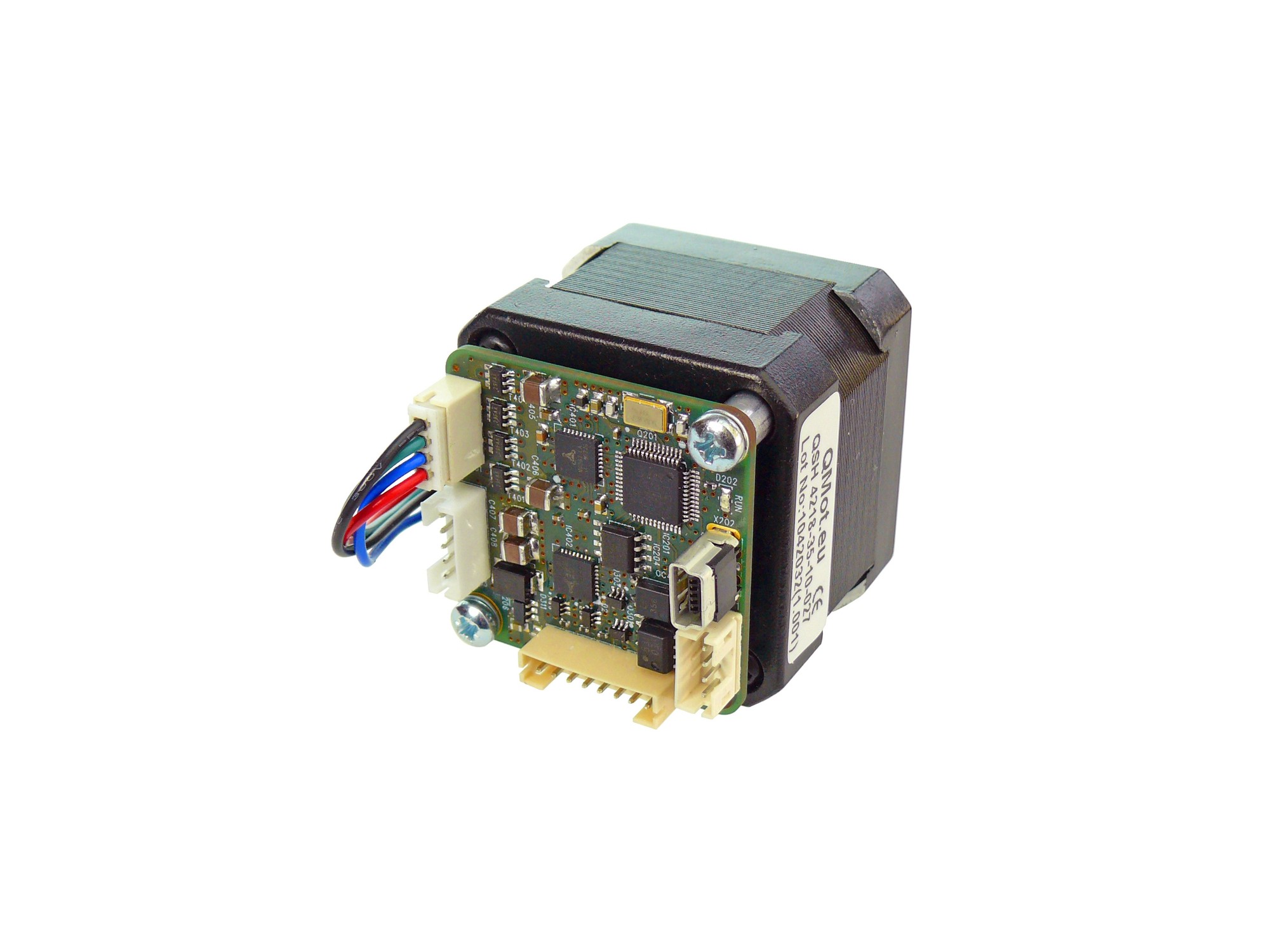

The PANdrive^™ PD42-1141 family is a mechatronic solution including a 40mm flange stepper motor and a controller board. It can be controlled via serial interface or operated in standalone mode. Power supply, external encoder, interface and I/Os can be connected with JST connectors.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE
