Analog Devices MAXM38643 Product Info

• Extends Battery Life
• 330nA Ultra-Low Quiescent Supply Current
• 1nA Shutdown Current
• 96% Peak Efficiency and over 88% at 10μA
• Easy to Use – Addresses Popular Operations
• 1.8V to 5.5V Input Range
• Single Resistor-Adjustable V_OUT from 0.7V to 3.3V
• Factory-Preprogrammed V_OUT from 0.5V to 5V
• ±1.75% Output Voltage Accuracy
• Up to 600mA Load Current Capability
• Protects System in Multiple Use Cases
• Reverse-Current Blocking in Shutdown
• Active Discharge Feature
• Reduces Size and Increases Reliability
• -40°C to +85°C Temperature Range
• 2.1mm x 2.6mm, 10-Lead eMGA Package

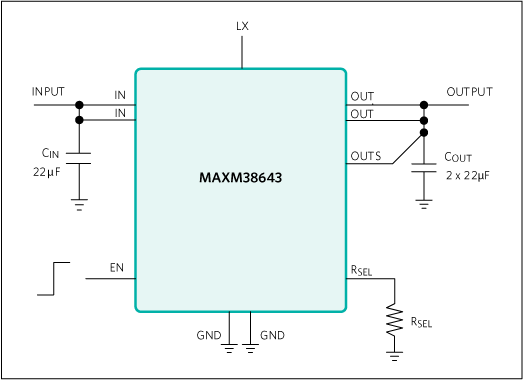

The MAXM38643 is an ultra-low-IQ (330nA) buck module that steps down input voltages in the range of 1.8V to 5.5V to a wide range of output voltages between 0.7V to 3.3V (using a single resistor at the R_SEL pin). The output voltage is programmable upon startup using a single external resistor from the R_SEL pin to GND. Factory-preprogrammed fixed output voltage versions from 0.5V to 5V are also available that do not use the R_SEL pin to set the output voltage. In this case, the R_SEL pin in the module is left floating.

The module offers robust performance features. To optimize efficiency and transient response across the load operation range, the module automatically switches between ultra-low-power mode (ULPM), low-power mode (LPM), and highpower mode (HPM) to better service the load, depending on the load current. The device overregulates in ULPM to improve efficiency and allow the output capacitor to handle the transient load currents. The device has 90% duty cycle limitation. An active discharge resistor pulls OUT to ground when the part is in shutdown.

Applications

• Bluetooth^® LE Devices
• Hearables
• Portable Space-Constrained Products
• Single Li+ and Coin Cell Battery Products
• Ultra-Low-Power IoT, NB IoT
• Wearables
• Wired, Wireless Products
