Analog Devices MAXM15068 Product Info

• Easy to Use
  • Wide 7.5V to 60V Input Range
  • Adjustable 5V to 12V Output
  • ±1.44% Feedback Accuracy
  • Up to 200mA Output-Current
  • Internally Compensated
  • All Ceramic Capacitors
• High Efficiency
  • Selectable PWM- or PFM-Mode of Operation
  • Shutdown Current as Low as 2.2µA (typ)
• Flexible Design
  • Internal Soft-Start and Prebias Startup
  • Open-Drain Power Good Output (Active-Low RESET Pin)
  • Programmable EN/UVLO Threshold
• Robust Operation
  • Hiccup Overcurrent Protection
  • Overtemperature Protection
  • -40°C to +125°C Ambient Operating Temperature/ -40°C to +150°C Junction Temperature
• Rugged
  • Complies with CISPR22 (EN55022) Class B Conducted and Radiated Emissions
  • Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111

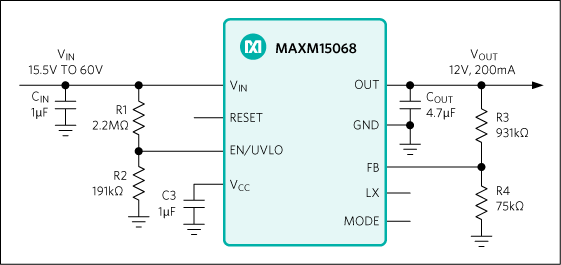

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power-supply solutions. The MAXM15068 is a high-efficiency, synchronous step-down DC-DC module with integrated controller, MOSFETs, compensation components, and inductor that operates over a wide input-voltage range. The module operates from 7.5V to 60V input and delivers up to 200mA output current over a programmable output voltage from 5V to 12V. The module significantly reduces design complexity, manufacturing risks, and offers a true plug and play power/supply solution, reducing time-to-market.

The MAXM15068 employs peak-current-mode control architecture. To reduce input inrush current, the device offers a fixed 3.75ms soft-start time.

The MAXM15068 module is available in a low profile, compact 10-pin, 2.6mm × 3mm × 1.5mm, uSLIC™ package.

Applications

• Industrial Sensors and Process Control
• 4-20mA Current-Loop Powered Sensors
• LDO Replacement
• HVAC and Building Control
• Battery-Powered Equipment
• General Purpose Point-of-Load
