Analog Devices MAX6683 Product Info

• Monitors Local Temperature
• Monitors Three External Voltages (1.8V, 2.5V, 5V Nominal)
• Monitors V_CC (3.3V Nominal)
• User-Programmable Voltage and Temperature Thresholds
• Alert Function with Ability to Respond to SMB Alert Response Address
• +2.7V to +5.5V Supply Range
• -40°C to +125°C Temperature Range
• 60Hz or 50Hz Line-Frequency Rejection
• Tiny 10-Pin µMAX Package
• MAX6683EVKIT Available

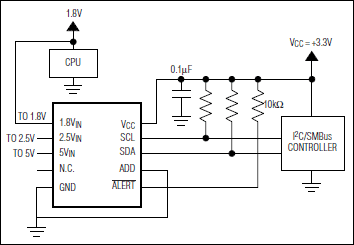

The MAX6683 system supervisor monitors multiple power-supply voltages, including its own, and also features an on-board temperature sensor. The MAX6683 converts voltages to an 8-bit code and temperatures to an 11-bit (10-bit-plus-sign) code using an analog-to-digital converter (ADC). A multiplexer automatically sequences through the voltage and temperature measurements. The digitized signals are then stored in registers and compared to the over/underthreshold limits programmed over the SMBus™/I²C-compatible 2-wire serial interface.

When a temperature measurement exceeds the programmed threshold, or when an input voltage falls outside the programmed voltage limits, the MAX6683 generates a latched interrupt output active-low ALERT. Three interrupt modes are available for temperature excursions. These are default mode, one-time interrupt mode, and comparator mode. The active-low ALERT output is cleared, except for temperature interrupts generated in comparator mode, by reading the Interrupt Status register (Table 5). The active-low ALERT output can also be masked by writing to the appropriate bits in the Interrupt Mask register (Table 6) or by setting bit 1 of the Configuration register (Table 4) to zero. The MAX6683 SMBus/I²C-compatible interface also responds to the SMB alert response address.

Applications

• Networking
• Servers
• Telecommunications
• Workstations
