Analog Devices MAX6636 Product Info

• Six Thermal-Diode Inputs
• Local Temperature Sensor
• 1°C Remote Temperature Accuracy (+60°C to +100°C)
• Temperature Monitoring Begins at POR for Fail-Safe System Protection
• Active-Low ALERT and Active-Low OVERT Outputs for Interrupts, Throttling, and Shutdown
• Active-Low STBY Input for Hardware Standby Mode
• Small, 20-Pin TSSOP Package
• 2-Wire SMBus Interface
• Penryn CPU-Compatible
• Pin- and Register-Compatible with MAX6689

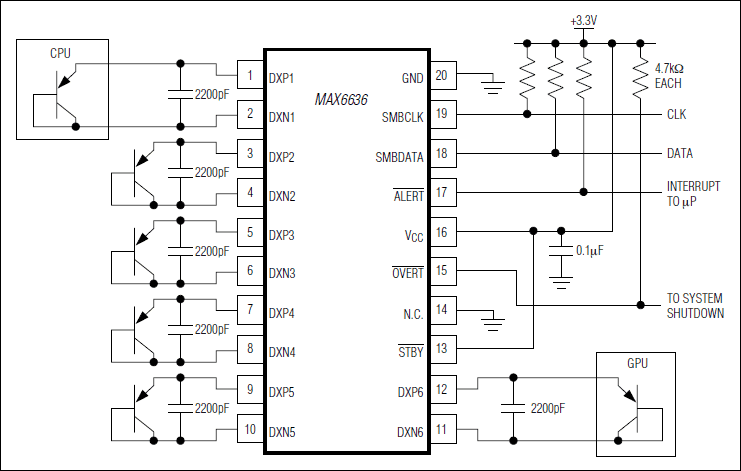

The MAX6636 precision multichannel temperature sensor monitors its own temperature and the temperatures of up to six external diode-connected transistors. All temperature channels have programmable alert thresholds. Channels 1, 4, 5, and 6 also have programmable overtemperature thresholds. When the measured temperature of a channel exceeds the respective threshold, a status bit is set in one of the status registers. Two open-drain outputs, active-low OVERT and active-low ALERT, assert corresponding to these bits in the status register.

The 2-wire serial interface supports the standard system management bus (SMBus™) protocols: write byte, read byte, send byte, and receive byte for reading the temperature data and programming the alarm thresholds.

The MAX6636 is specified for a -40°C to +125°C operating temperature range and is available in a 20-pin TSSOP package.

Applications

• Desktop Computers
• Notebook Computers
• Servers
• Workstations
