Analog Devices MAX5722 Product Info

• Ultra-Low Power Consumption
  • 112µA at V_DD = +3.6V
  • 135µA at V_DD = +5.5V
• Wide +2.7V to +5.5V Single-Supply Range
• 8-Pin µMAX Package
• 0.3µA Power-Down Current
• Guaranteed 12-Bit Monotonicity (±1 LSB DNL)
• Safe Power-Up Reset to Zero Volts at DAC Output
• Three Software-Selectable Power-Down Impedances (100kΩ, 1kΩ, Hi-Z)
• Fast 20MHz, 3-Wire SPI, QSPI, and MICROWIRE-Compatible Serial Interface
• Rail-to-Rail Output Buffer Amplifiers
• Schmitt-Triggered Logic Inputs for Direct Interfacing to Optocouplers
• Wide -40°C to +125°C Operating Temperature Range

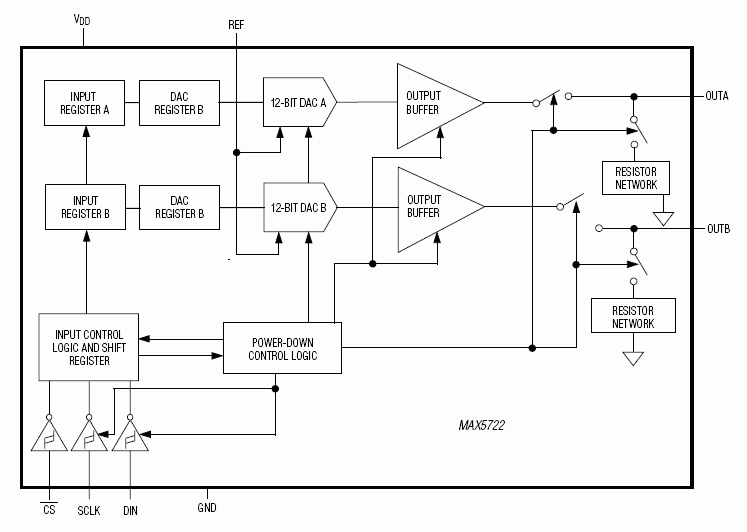

The MAX5722 dual,12-bit, low-power, buffered voltage-output, digital-to-analog converter (DAC) is packaged in a space-saving 8-pin µMAX® package (5mm x 3mm). The wide supply voltage range of +2.7V to +5.5V and 112µA supply current accommodates low-power and low-voltage applications. DAC outputs employ on-chip precision output amplifiers that swing rail-to-rail. The MAX5722's reference input accepts a voltage range from 0 to V_DD. In power-down, the reference input is high impedance, further reducing the system's total power consumption.

The 20MHz, 3-wire SPI™, QSPI™, MICROWIRE™, and DSP-compatible serial interface save board space and reduce the complexity of opto- and transformer-isolated applications. The MAX5722 on-chip power-on reset (POR) circuit resets the DAC outputs to zero and loads the output with a 100kΩ resistor to ground. This provides additional safety for applications that drive valves or other transducers that need to be off on power-up. The MAX5722's software-controlled power-down reduces supply current to less than 0.3µA and provides software-selectable output loads (1kΩ, 100kΩ, or high impedance) while in power-down. The MAX5722 is specified over the -40°C to +125°C automotive temperature range.

Applications

• Automatic Tuning
• Battery-Powered Instruments
• Gain and Offset Adjustment
• Power Amplifier Control
• Process-Control I/O Boards
• VCO Control
