Analog Devices MAX5488 Product Info

• Wiper Position Stored in Nonvolatile Memory (EEPROM) and Recalled Upon Power-Up or Recalled by an Interface Command
• 3mm x 3mm x 0.8mm, 16-Pin Thin QFN or 14-Pin TSSOP Packages
• ±1 LSB INL, ±0.5 LSB DNL (Voltage-Divider Mode)
• 256 Tap Positions
• 35ppm/°C End-to-End Resistance Temperature Coefficient
• 5ppm/°C Ratiometric Temperature Coefficient
• 10kΩ, 50kΩ, and 100kΩ End-to-End Resistance Values
• SPI-Compatible Serial Interface
• Reliability
  • 200,000 Wiper Store Cycles
  • 50-Year Wiper Data Retention
• +2.7V to +5.25V Single-Supply Operation

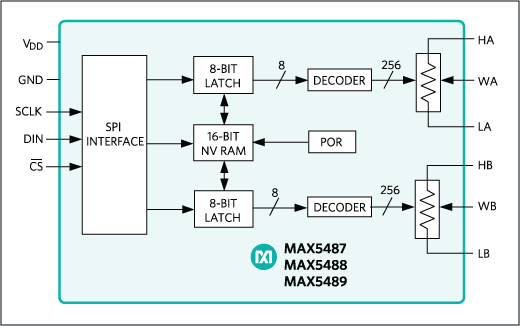

The MAX5487/MAX5488/MAX5489 dual, linear-taper, digital potentiometers function as mechanical potentiometers with a simple 3-wire SPI™-compatible digital interface that programs the wipers to any one of 256 tap positions. These digital potentiometers feature a nonvolatile memory (EEPROM) to return the wipers to their previously stored positions upon power-up.

The MAX5487 has an end-to-end resistance of 10kΩ, while the MAX5488 and MAX5489 have resistances of 50kΩ and 100kΩ, respectively. These devices have a low 35ppm/°C end-to-end temperature coefficient, and operate from a single +2.7V to +5.25V supply.

The MAX5487/MAX5488/MAX5489 are available in 16-pin 3mm x 3mm x 0.8mm thin QFN or 14-pin TSSOP packages. Each device is guaranteed over the extended -40°C to +85°C temperature range.

Applications

• Audio Volume Control
• LCD Screen Adjustment
• Low-Drift Programmable Filters
• Low-Drift Programmable-Gain Amplifiers
• Mechanical Potentiometer Replacement
