Analog Devices MAX5386 Product Info

• Dual, 256-Tap, Linear Taper Positions
• Single +2.6V to +5.5V Supply Operation
• Low (< 1µA) Quiescent Supply Current
• 10kΩ, 50kΩ, 100kΩ End-to-End Resistance Values
• SPI-Compatible Interface
• Power-On Sets Wiper to Midscale
• -40°C to +125°C Operating Temperature Range

The MAX5386/MAX5388 dual, 256-tap, volatile, low- voltage linear taper digital potentiometers offer three end-to-end resistance values of 10kΩ, 50kΩ, and 100kΩ. Operating from a single +2.6V to +5.5V power supply these devices provide a low 35ppm/°C end-to-end temperature coefficient. The devices feature an SPI interface.

The small package size, low supply voltage, low supply current, and automotive temperature range of the MAX5386/MAX5388 make the devices uniquely suitable for the portable consumer market and battery-backup industrial applications.

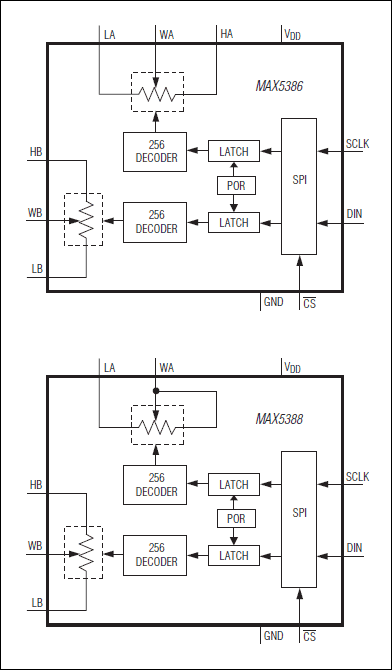

The MAX5386 includes two digital potentiometers in a voltage-divider configuration. The MAX5388 includes one digital potentiometer in a voltage-divider configuration and one digital potentiometer in a variable-resistor configuration. The MAX5386/MAX5388 are specified over an extended -40°C to +125°C temperature range and are available in 16-pin, 3mm x 3mm TQFN or 10-pin, 3mm x 5mm µMAX^® packages, respectively.

Applications

• Adjustable Voltage References/Linear Regulators
• Low-Voltage Battery Applications
• Mechanical Potentiometer Replacement
• Offset and Gain Control
• Portable Electronics
