Analog Devices MAX5237 Product Info

• Guaranteed 1/2LSB INL (max)
• Low Supply Current
  • 325µA (Normal Operation)
  • 0.4µA (Full Power-Down Mode)
• Single-Supply Operation
  • 3V (MAX5236)
  • 5V (MAX5237)
• Space-Saving 10-Pin µMAX Package
• Output Buffers Swing Rail-to-Rail
• Power-On Reset Clears Registers and DACs to Zero
• Programmable Shutdown Modes with 1kΩ or 200kΩ Internal Loads
• Resets to Zero
• 13.5MHz SPI/QSPI/MICROWIRE-Compatible, 3-Wire Serial Interface
• Buffered Output Drives 5kΩ || 100pF

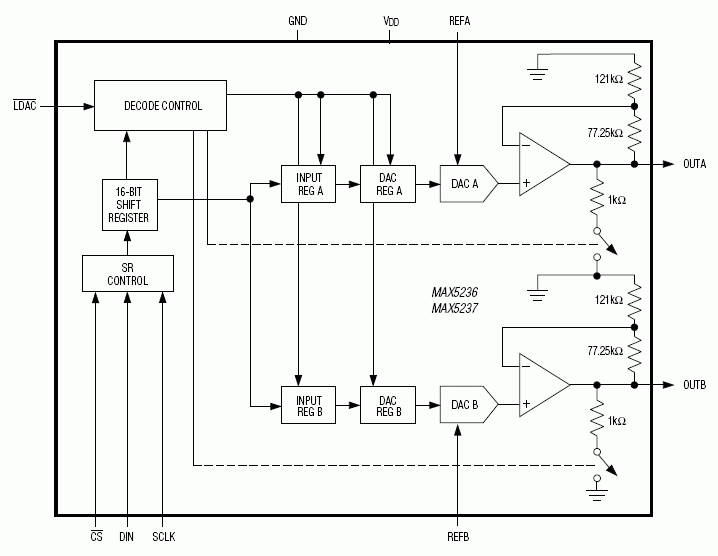

The MAX5236/MAX5237 precision, dual, voltage-output, 10-bit digital-to-analog converters (DACs) consume only 360µA from a single 5V (MAX5237) or 325µA from a single 3V (MAX5236) supply. These devices feature output buffers that swing rail-to-rail. The internal gain amplifiers (1.6384V/V) maximize the dynamic range of the DAC output.

The MAX5236/MAX5237 feature 13.5MHz a 3-wire serial interface compatible with SPI™/QSPI™/and MICROWIRE™. Each DAC input is organized as an input register followed by a DAC register. A 16-bit shift register loads data into the input registers. Input registers update the DAC registers independently or simultaneously. In addition, programmable control bits allow power-down with 1kΩ or 200kΩ internal loads. The MAX5236/MAX5237 are fully specified over the extended industrial temperature range (-40°C to +85°C) and are available in space-saving 10-pin µMAX® packages.

Applications

• µP-Controlled Systems
• Automated Test Equipment (ATE)
• Digital Gain and Offset Control
• Industrial Process Controls
• Motion Control
