Analog Devices MAX4514 Product Info

• Available in SOT23-5 Package
• +2V to +12V Single-Supply Operation
• Guaranteed On-Resistance:
  • 20Ω with +5V Supply
  • 10Ω with +12V Supply
• Guaranteed Low Off-Leakage Currents:
  • 1nA at +25°C
  • 20nA at +85°C
• Guaranteed Low On-Leakage Currents:
  • 2nA at +25°C
  • 40nA at +85°C
• Low Charge Injection: 10pC
• Fast Switching Speed: t_ON = 150ns, t_OFF = 100ns
• Break-Before-Make Operation: t_ON > t_OFF at +5V
• TTL/CMOS-Logic Compatible with +5V Supply

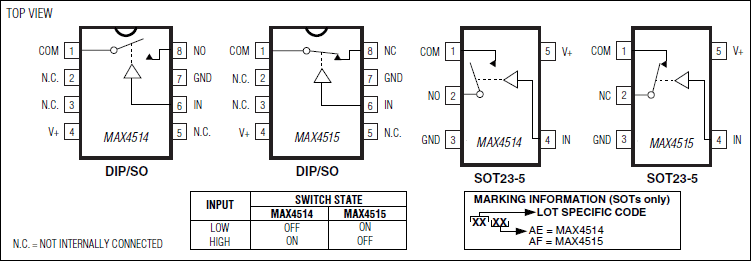

The MAX4514/MAX4515 are single-pole/single-throw (SPST), CMOS, low-voltage, single-supply analog switches with very low switch on-resistance. The MAX4514 is normally open (NO). The MAX4515 is normally closed (NC).

These CMOS switches can operate continuously with a single supply between +2V and +12V. Each switch can handle rail-to-rail analog signals. The off-leakage current maximum is only 1nA at +25°C or 20nA at +85°C.

All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a +5V supply.

For pin-compatible parts for use with dual supplies, see the MAX4516/MAX4517.

Applications

• Audio/Video Signal Routing
• Battery-Powered Applications
• Cell Phones
• Communication Systems
• Low-Voltage Data Acquisition
• Modems
• PCMCIA Cards
