Analog Devices MAX3801 Product Info

• Single +3.3V Operation
• Typical Power Dissipation = 125mW at +3.3V
• Data Rates Up to 3.2Gbps
• Equalizer Automatically Adjusts for Different Cable Lengths
• 0dB to 30dB Equalization at 1.6GHz (3.2Gbps)
• Loss-of-Signal (LOS-bar) Indicator
• Cable Integrity Monitor (CIM)
• On-Chip Input and Output Terminations
• Low External Component Count
• Operating Temperature Range = 0°C to +85°C
• ESD Protection on Inputs and Outputs

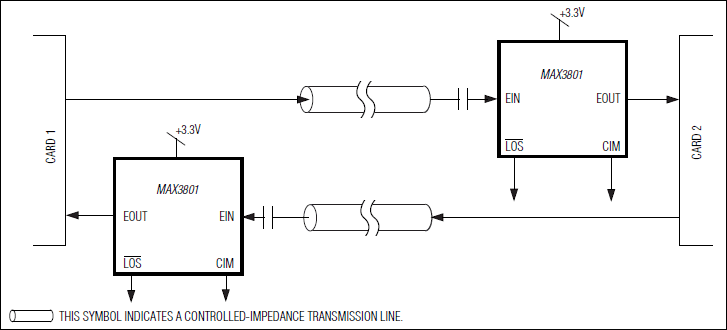

The MAX3801 is a +3.3V adaptive cable equalizer designed for coaxial and twin-axial cable point-to-point communications applications. The equalizer includes differential CML data inputs and outputs, a loss-of-signal (active-low LOS) output, and a cable integrity monitor (CIM) output.

The adaptive cable equalizer is capable of equalizing differential or single-ended signals at data rates up to 3.2Gbps. It automatically adjusts to attenuation caused by skin-effect losses of up to 30dB at 1.6GHz. The equalizer effectively extends the usable length of copper cable in high-frequency interconnect applications.

The MAX3801 is available in a 24-pin QFN package with exposed pad and consumes only 125mW at +3.3V.

Applications

• Backplane and Interconnect Applications
• High-Speed Links in Communications and Data Systems
• SDH/SONET Transmission Equipment
