MAX34460A

PRODUCTION

PMBus 12-Channel Voltage Monitor and Sequencer

Analog Devices MAX34460A Product Info

10 February 2026 5

Features

12 Channels of Power-Supply Management
On-Board Nonvolatile Black Box Fault Logging and Default Configuration Setting
Supports Complex Sequencing Requirements
- Dual Sequencing Groups
- Time- and Event-Based Sequencing
- Parallel/Cascaded Device Operation
- Programmable Up and Down Sequencing
- Watchdog Timer Function
Easy to Program and Monitor
- PMBus™-Compatible Command Interface
- Easy-to-Use GUI
- Programmable Alarm Outputs
Flexible Measurement and Monitoring Capability
- Reports Peak and Average Levels
- Four Remote Temperature Sensors
- One Internal Temperature Sensor

Automatic Closed-Loop Margining Improves Accuracy
Remote Ground Sensing Improves Measurement Accuracy
Simplifies System-Level Design
- Up to 20 GPOs
- No External Clocking Required
- I²C/SMBus-Compatible Serial Bus with Bus Timeout Function
Fast Minimum/Maximum Threshold-Excursion Detection
3.0V to 3.6V Supply Voltage

Part details & applications

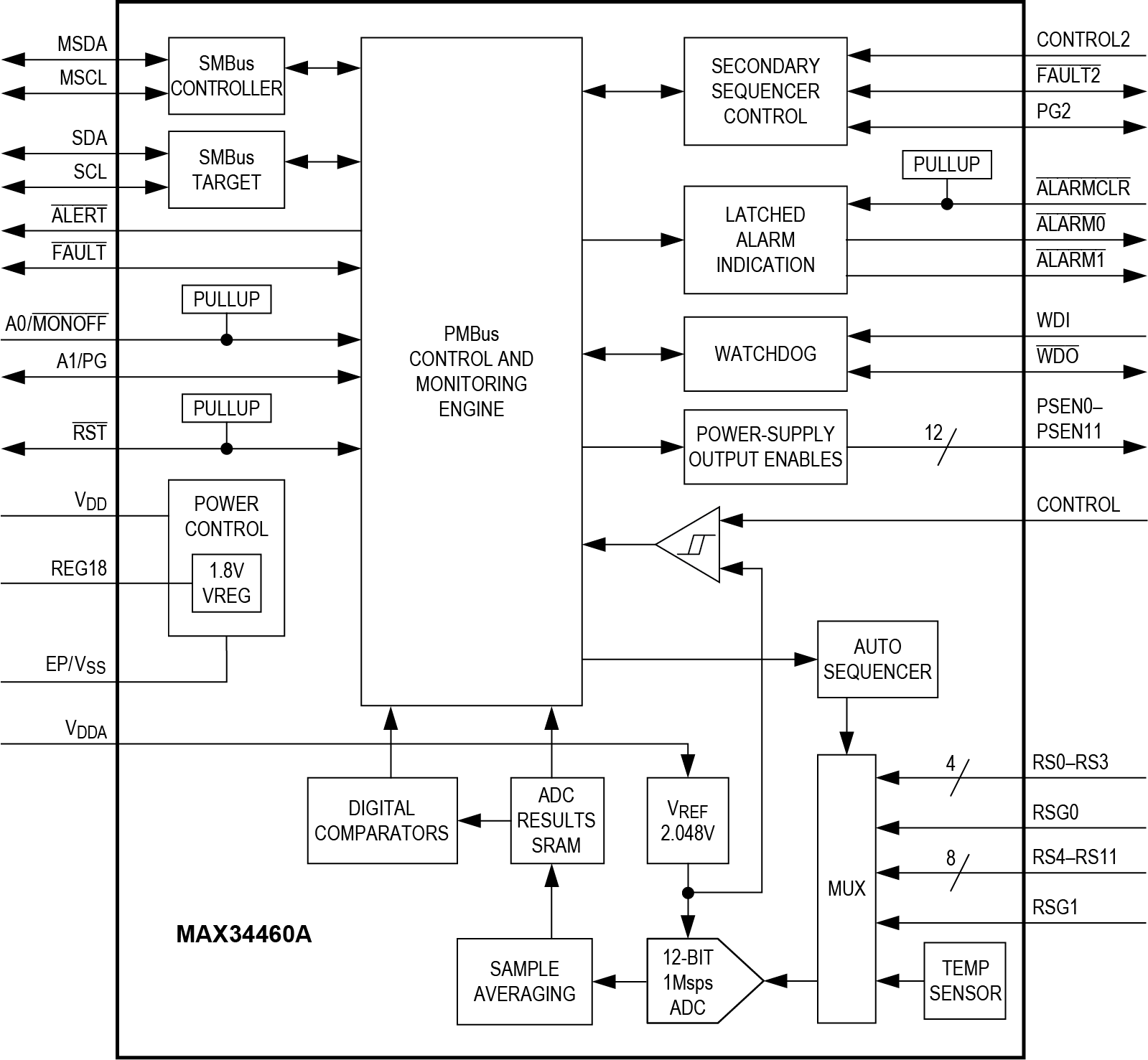

The MAX34460A is a system monitor that is capable of managing up to 12 power supplies. The power-supply manager monitors the power-supply output voltages and constantly checks for user-programmable overvoltage and undervoltage thresholds. If a fault is detected, the device automatically shuts down the system in an orderly fashion. The device can sequence the supplies in any order at both power-up and power-down. With the addition of external current DACs, the device has the ability to close-loop margin the power-supply output voltages up or down to a user-programmable level. The device contains an internal temperature sensor and can support up to four external remote temperature sensors. Once configured, the device can operate autonomously without any host intervention.

APPLICATIONS

Network Switches/Routers

Base Stations

Servers

Smart Grid Network Systems
