MAX334

PRODUCTION

High Speed Quad SPST Analog Switch

Analog Devices MAX334 Product Info

10 February 2026 6

Features

R_DS(ON) 50Ω (max.)
Guaranteed Break-Before-Make Switching
Single or Bipolar Supply Operation
CMOS and TTL Logic Compatible
Faster, Lower R_ON Replacement for DG201 and DG211

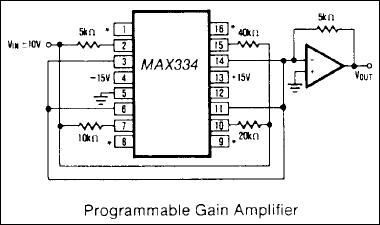

Part details & applications

The MAX334 is a quad single-pole-single-throw, normally closed (SPST, NC) analog switch, pin compatible with the Harris Hl-201 HS and Siliconix DG2n The MAX334 has guaranteed break-before-make switching (t_OFF < t_ON), while featuring fast switching speeds. Turn-on time is less than 100ns and turn-off time is less than 50ns; channel on resistance is 50 ohms maximum. CMOS inputs provide reduced input loading and very low leakage currents.

The MAX334 is also a direct replacement for the DG201 and DG211, featuring ¼ the on resistance and five times the speed.

The MAX334 may be used with split supplies ( ±5V to ±15V) or single positive supplies (+5V to +30V) while retaining CMOS and TTL logic compatible inputs, and maintaining high switching speed.

APPLICATIONS

Sample and Hold Circuits
Winchester Disk Drives
Test Equipment
Communications Systems PBX, PABX
Guidance and Control Systems
Heads-up Displays
Military Radios
