Analog Devices MAX30208 Product Info

• High Accuracy and Precision
  • ±0.1° C Accuracy from +30°C to +50°C
  • ±0.15°C Accuracy from +0°C to +70°C
• Low Power Consumption
  • 1.7V to 3.6V Operating Voltage
  • 67μA Operating Current During Measurement
  • 0.5μA Standby Current
  • 15ms Integration Time
• Small Size
  • 2mm x 2mm x 0.75mm, 10-Pin Thin LGA
• Safety and Compliance
  • High and Low Temperature Alarms
• Digital Interface
  • Configurable Convert Temperature Input Pin
  • Configurable Interrupt Output Pin
  • 32-Word FIFO for Temperature Data
  • 4 I²C Addresses Available—More Addresses Available by Request
  • Unique ROM IDs Allow Device to be NIST Traceable

The MAX30208 operates from a 1.7V to 3.6V supply voltage, and is a low-power, high-accuracy digital temperature sensor with ±0.1°C accuracy from +30°C to +50°C and ±0.15°C accuracy from 0°C to +70° C. The MAX30208 has 16-bit resolution (0.005°C).

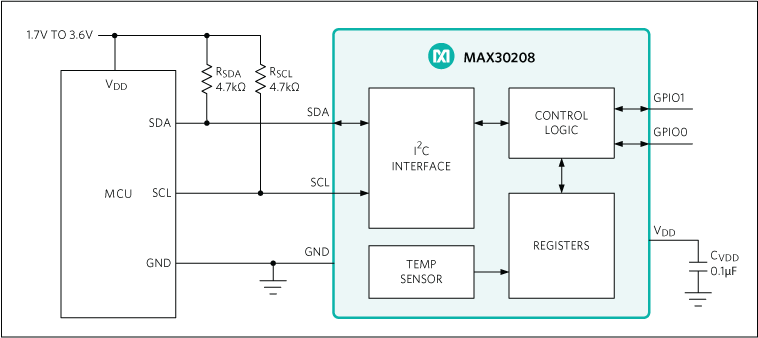

The device uses a standard I²C serial interface to communicate with a host controller. Two GPIO pins are available. GPIO1 can be configured to trigger a temperature conversion, while GPIO0 can be configured to generate an interrupt for selectable status bits.

The MAX30208 includes a 32-word FIFO for the temperature data and also includes high and low threshold digital temperature alarms. The device is available in a 2mm x 2mm x 0.75mm, 10-pin Thin LGA package.

Applications

• Internet of Things (IoT) Sensors
• Medical Thermometers
• Wearable Body Temperature Monitors
