Analog Devices MAX2673 Product Info

• RF Output Frequencies: 400MHz to 2.5GHz
• Low Noise Figure: 9.3dB (900MHz, MAX2671)
• +2.7V to +5.5V Single Supply
• High Output Intercept Point (OIP3)
  • 5.9dBm at 4.8mA (MAX2660)
  • 7.1dBm at 8.3mA (MAX2661)
  • 0.7dBm at 3.0mA (MAX2663)
  • 9.6dBm at 11.8mA (MAX2671)
  • 7.6dBm at 20.5mA (MAX2673)
• 1µA Shutdown Mode
• Ultra-Small Surface-Mount Packaging

The MAX2660/MAX2661/MAX2663/MAX2671/MAX2673 miniature, low-cost, low-noise upconverters are designed for low-voltage operation and are ideal for use in portable consumer equipment. Signals at the IF input port are mixed with signals at the local oscillator (LO) port using a double-balanced mixer. These upconverters operate with IF input frequencies between 40MHz and 500MHz, and upconvert to output frequencies as high as 2.5GHz.

These upconverters offer a wide range of supply currents and output intercept levels to optimize system performance. Supply current is essentially constant over the specified supply voltage range. Additionally, when the devices are in a typical configuration with V_SHDN-bar = 0, a shutdown mode reduces the supply current to less than 1µA.

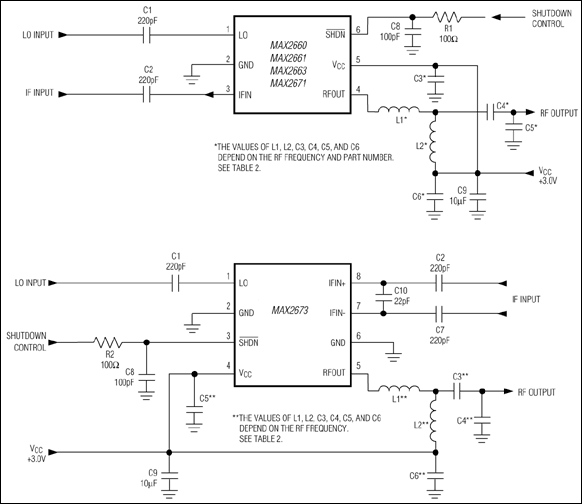

The MAX2660/MAX2661/MAX2663/MAX2671 family of upconverters are offered in the space-saving 6-pin SOT23 package. For applications requiring balanced IF ports, choose the MAX2673 upconverters in the 8-pin µMAX package.

Applications

• 400MHz/900MHz/2.4GHz ISM
• Cell Phones/Cordless Phones
• Handheld Radios
• IEEE 802.11 and Wireless Data
• Personal Communications Systems (PCS)
• Wireless Local Area Networks (WLANs)
