MAX20415

RECOMMENDED FOR NEW DESIGNS

2.2MHz Dual-Output, Low-Voltage Step-Down Converters

Analog Devices MAX20415 Product Info

10 February 2026 4

Features

Multiple Functions for Small Size
- Dual Synchronous Buck Converters up to 3A
  - Fixed Output Voltage from 0.8V to 3.8V
  - Resistor-Adjustable Output Voltage
- 3.0V to 5.5V Operating Supply Voltage
- 2.2MHz Operation
- Individual EN_ Inputs and RESET_ Outputs I
- Input Supply Monitoring PV_OV Output
High Precision
- ±1.5% Output-Voltage Accuracy
- ±1.5% Over/Undervoltage Monitoring Accuracy
- Good Load-Transient Performance

Diagnostics and Redundant Circuits
- ASIL-C Compliant
- Redundant Reference
- Fail Safe on Open Pins
- Shorted-Pin Detection on RESET1/RESET2
- Input Overvoltage Detection
Robust for the Automotive Environment
- Current-Mode, Forced-PWM, and Skip Operation
- Overtemperature and Short-Circuit Protection
- 4mm x 4mm, 24-Pin TQFN Package
- -40°C to +125°C Automotive Temperature Range

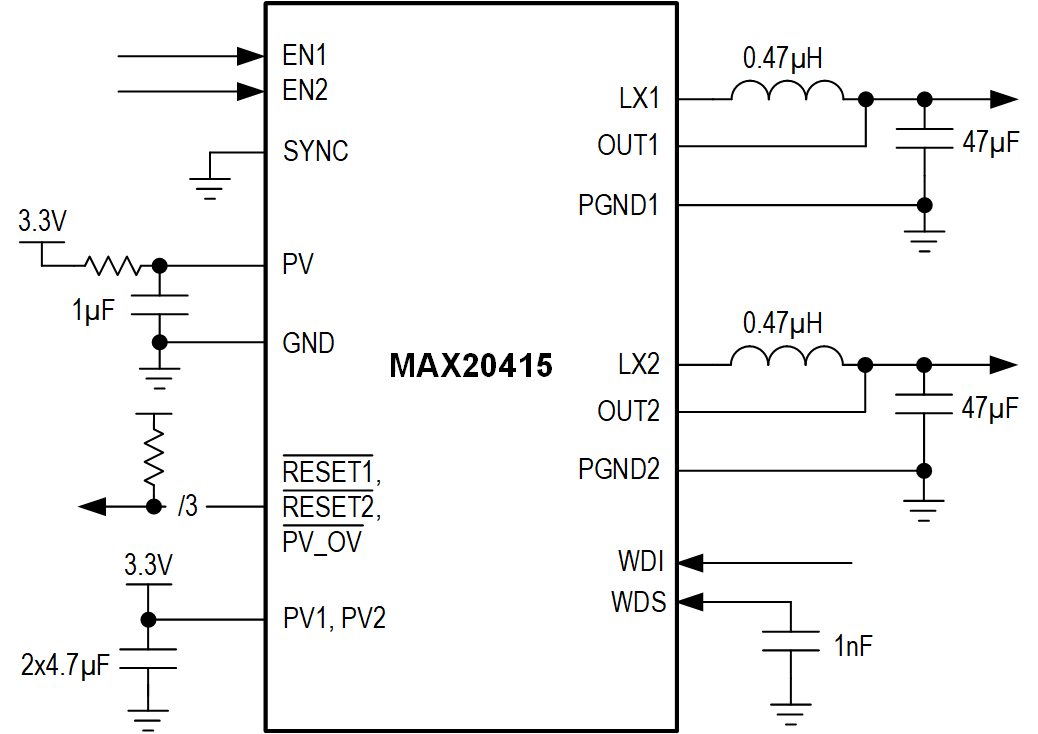

Part details & applications

The MAX20415 is a high-efficiency, dual-output, low-voltage DC-DC converter. The synchronous step-down converters operate from a 3.0V to 5.5V input voltage range and provide a 0.8V to 3.8V output voltage range at up to 3A. The buck converters achieve ±1.5% output error over load, line, and temperature range.

The IC features a 2.2MHz fixed-frequency pulse-width modulation (PWM) mode for better noise immunity and load-transient response, and a pulse-frequency modulation mode (skip) for increased efficiency during light-load operation. The 2.2MHz frequency operation allows for use of all-ceramic capacitors, minimizing the total solution footprint. Programmable spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low R_DS(ON) switches improve efficiency at heavy loads and make the layout a much simpler task with respect to discrete solutions.

The IC is offered with factory-preset or resistor-adjustable output voltages. Other features include soft-start, over-current protection, pin diagnostics, and overtemperature protections. The MAX20415 is available in a lead(Pb)-free, 24-pin TQFN package (see the Ordering Information/Selector Guide for available options).

APPLICATIONS

Automotive ADAS Applications

Short-Range Radar
