Analog Devices MAX202 Product Info

• Saves Board Space
  • Integrated Charge Pump Circuitry
    • Eliminates the Need for a Bipolar ±12V Supply
    • Enables Single Supply Operation From Either +5V or 9V to +12V
  • Integrated 0.1μF Capacitors (MAX203, MAX205)
  • 24 pin SSOP Package Saves Up to 40% Versus SO Package
• Saves Power for Longer Battery Operation
  • 5µW Shutdown Mode (MAX200, MAX205, MAX206, MAX211)
  • 75µW Ring Indicator Monitoring with Two Active Receivers (MAX213)

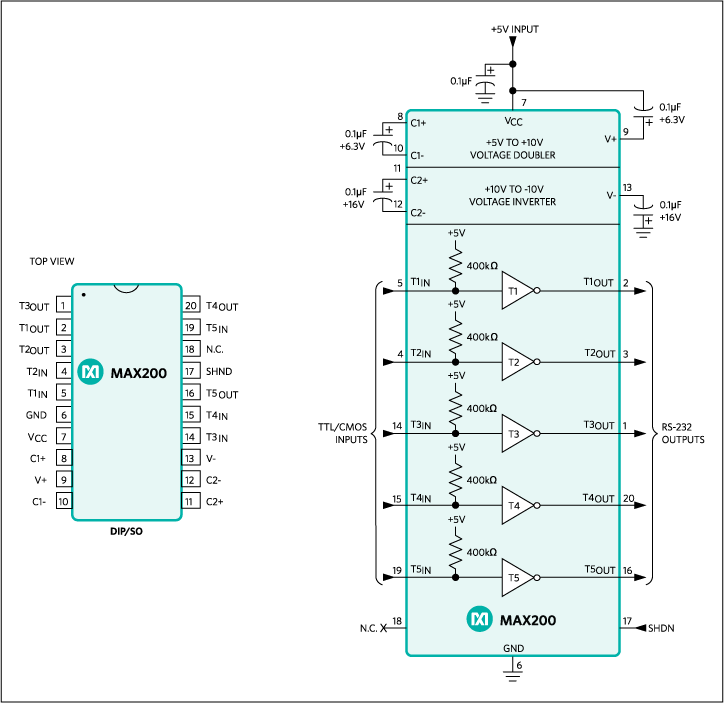

MAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation.

The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification.

The MAX211 and MAX213 are available in a 28-pin, wide small-outline (SO) package and a 28-pin shrink small- outline (SSOP) package, which occupies only 40% of the area of the SO. The MAX207 is available in a 24-pin SO package and a 24-pin SSOP. The MAX203 and MAX205 use no external components and are recommended for applications with limited circuit board space.

Applications

• Battery-Powered Equipment
• Handheld Equipment
• Portable Diagnostics Equipment
