Analog Devices MAX19506 Product Info

• Very-Low-Power Operation (57mW/Channel at 100Msps)
• 1.8V or 2.5V to 3.3V Analog Supply
• Excellent Dynamic Performance
  • 49.8dBFS SNR at 70MHz
  • 69dBc SFDR at 70MHz
• User-Programmable Adjustments and Feature Selection through an SPI™ Interface
• Selectable Data Bus (Dual CMOS or Single Multiplexed CMOS)
• DCLK Output and Programmable Data Output Timing Simplifies High-Speed Digital Interface
• Very Wide Input Common-Mode Voltage Range (0.4V to 1.4V)
• Very High Analog Input Bandwidth (> 850MHz)
• Single-Ended or Differential Analog Inputs
• Single-Ended or Differential Clock Input
• Divide-by-One (DIV1), Divide-by-Two (DIV2), and Divide-by-Four (DIV4) Clock Modes
• Two's Complement, Gray Code, and Offset Binary Output Data Format
• Out-of-Range Indicator (DOR)
• CMOS Output Internal Termination Options (Programmable)
• Reversible Bit Order (Programmable)
• Data Output Test Patterns
• Small 7mm x 7mm, 48-Pin Thin QFN Package with Exposed Pad

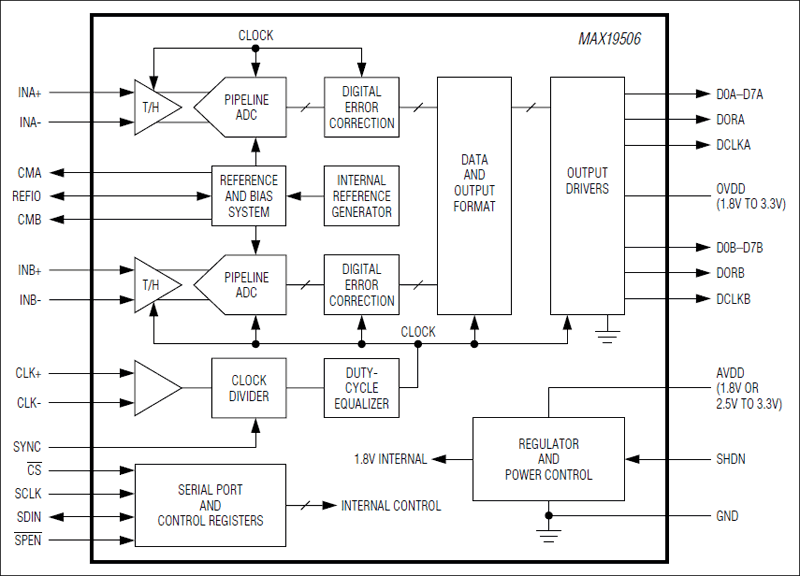

The MAX19506 dual-channel, analog-to-digital converter (ADC) provides 8-bit resolution and a maximum sample rate of 100Msps.

The MAX19506 analog input accepts a wide 0.4V to 1.4V input common-mode voltage range, allowing DC-coupled inputs for a wide range of RF, IF, and baseband front-end components. The MAX19506 provides excellent dynamic performance from baseband to high input frequencies beyond 400MHz, making the device ideal for zero-intermediate frequency (ZIF) and high-intermediate frequency (IF) sampling applications. The typical signal-to-noise ratio (SNR) performance is 49.8dBFS and typical spurious-free dynamic range (SFDR) is 69dBc at f_IN = 70MHz and f_CLK = 100MHz.

The MAX19506 operates from a 1.8V supply. Additionally, an integrated, self-sensing voltage regulator allows operation from a 2.5V to 3.3V supply (AVDD). The digital output drivers operate on an independent supply voltage (OVDD) over the 1.8V to 3.5V range. The analog power consumption is only 57mW per channel at V_AVDD = 1.8V. In addition to low operating power, the MAX19506 consumes only 1mW in power-down mode and 17mW in standby mode.

Various adjustments and feature selections are available through programmable registers that are accessed through the 3-wire serial-port interface. Alternatively, the serial-port interface can be disabled, with the three pins available to select output mode, data format, and clock-divider mode. Data outputs are available through a dual parallel CMOS-compatible output data bus that can also be configured as a single multiplexed parallel CMOS bus.

The MAX19506 is available in a small 7mm x 7mm, 48-pin thin QFN package and is specified over the -40°C to +85°C extended temperature range.

Refer to the MAX19515, MAX19516, and MAX19517 data sheets for pin- and feature-compatible 10-bit, 65Msps, 100Msp
