Analog Devices MAX14760 Product Info

• Simplify Power-Supply Requirements
  • 3.0V to 5.5V Supply Range
  • -25V to +25V Signal Range
• High Performance
  • ±10nA (max) On-Leakage Current (MAX14760/MAX14762)
  • 20Ω (max) On-Resistance
  • Low On-Resistance Flatness, 58mΩ (typ)
  • Thermal Shutdown Protection
  • -40°C to +85°C Operating Temperature Range
  • High Bandwidth: 115MHz (typ)
• Save Space on Board
  • Small 8-Pin and 10-Pin TDFN Packages

The MAX14760/MAX14762/MAX14764 analog switches are capable of passing bipolar signals that are beyond their supply rails. These devices operate from a single +3.0V to +5.5V supply, and support signals in the -25V to +25V range.

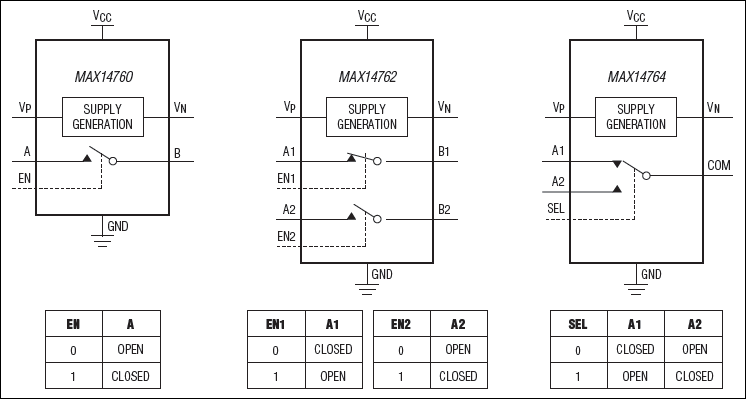

The MAX14760 is a single-pole/single-throw (SPST) analog switch, while the MAX14762 is a dual-SPST analog switch. The MAX14764 is a single-pole/double-throw (SPDT) analog switch.

The MAX14760/MAX14762/MAX14764 feature 20Ω (max) on-resistance with a ±10nA (max) on-leakage current for MAX14760/MAX14762.

The MAX14760/MAX14764 are available in 8-pin (3mm x 3mm) TDFN packages. The MAX14762 is available in a 10-pin (3mm x 3mm) TDFN package. These devices are specified over the -40°C to +85°C extended operating temperature range.

Applications

• ATE Systems
• Audio Signal Routing and Switching
• Industrial Measurement Systems
• Instrumentation Systems
• Medical Systems
• Opto-Relay Replacement
