Analog Devices MAX13234E Product Info

• Data Rate Up to 3Mbps for Faster Throughput
• Saves Board Space
  • Integrated Low-Voltage Logic for Easy Interface with ASICs and Microcontrollers
  • Integrated ±15kV HBM ESD Protection
  • Integrated Charge-Pump Circuitry Requiring Only Four External 0.1µF Capacitors for 3.3V Operation
• +3V to +5.5V Supply Voltage
• AutoShutdown Plus Achieves 1µA Shutdown Current Reduces Power Consumption
• Available in 20-pin TSSOP, TQFN-EP, and 16-pin TQFN
• -40°C to +85°C Operating Temperature

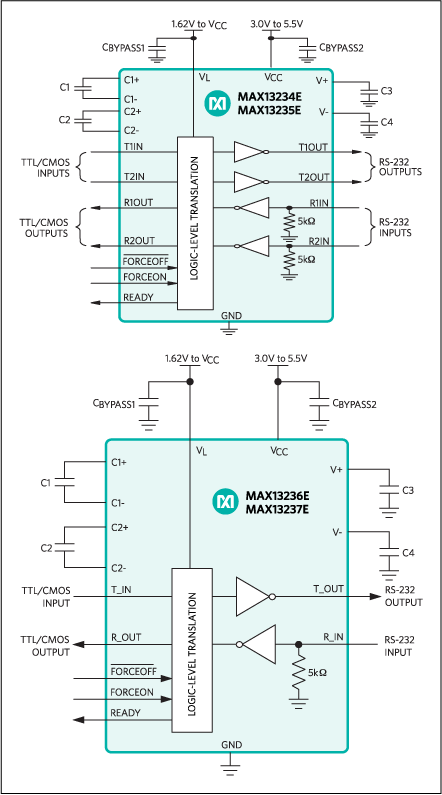

The MAX13234E-MAX13237E are a family of 2 x 2 and 1 x 1 RS-232 and V.28/V.24 transceivers with high speed data rates up to 3Mbps that operate from either a 3.3V or 5V supply.

All devices achieve a 1µA supply current using Maxim’s AutoShutdown Plus™ feature. These devices automatically enter a low-power shutdown mode when the RS-232 cable is disconnected or the devices driving the transmitter and receiver inputs are inactive for more than 30s.

The MAX13234E–MAX13237E are available in space-saving TQFN and TSSOP packages and operate over the -40°C to +85°C temperature range.
