MAX1198
  • MAX1198

MAX1198

PRODUCTION

Dual, 8-Bit, 100Msps, 3.3V, Low-Power ADC with Internal Reference and Parallel Outputs

Analog Devices MAX1198 Product Info

10 February 2026 5

Features

  • Single 2.7V to 3.6V Operation
  • Excellent Dynamic Performance
    • 48.1dB/47.6dB SINAD at fIN = 50MHz/200MHz
    • 66dBc/61.5dBc SFDR at fIN = 50MHz/200MHz
  • -72dB Interchannel Crosstalk at fIN = 50MHz
  • Low Power
    • 264mW (Normal Operation)
    • 10.6mW (Sleep Mode)
    • 0.5µW (Shutdown Mode)
  • 0.05dB Gain and ±0.1° Phase Matching
  • Wide ±1VP-P Differential Analog Input Voltage Range
  • 400MHz -3dB Input Bandwidth
  • On-Chip 2.048V Precision Bandgap Reference
  • User-Selectable Output Format—Two's Complement or Offset Binary
  • Pin-Compatible 8-Bit and 10-Bit Upgrades Available

Part details & applications

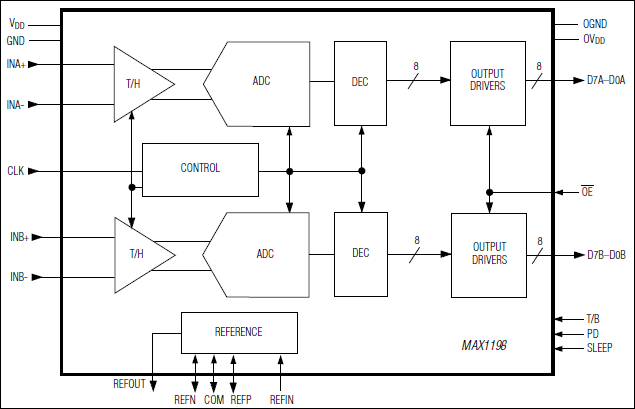

The MAX1198 is a 3.3V, dual, 8-bit analog-to-digital converter (ADC) featuring fully differential wideband track-and-hold (T/H) inputs, driving two ADCs. The MAX1198 is optimized for low power, small size, and high-dynamic performance for applications in imaging, instrumentation, and digital communications. This ADC operates from a single 2.7V to 3.6V supply, consuming only 264mW, while delivering a typical signal-to-noise and distortion (SINAD) of 48.1dB at an input frequency of 50MHz and a sampling rate of 100Msps. The T/H-driven input stages incorporate 400MHz (-3dB) input amplifiers. The converters may also be operated with single-ended inputs. In addition to low operating power, the MAX1198 features a 3.2mA sleep mode, as well as a 0.15µA power-down mode to conserve power during idle periods.

An internal 2.048V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of this internal or an externally applied reference, if desired, for applications requiring increased accuracy or a different input voltage range.

The MAX1198 features parallel, CMOS-compatible three-state outputs. The digital output format can be set to two's complement or straight offset binary through a single control pin. The device provides for a separate output power supply of 1.7V to 3.6V for flexible interfacing with various logic families. The MAX1198 is available in a 7mm x 7mm, 48-pin TQFP package, and is specified for the extended industrial (-40°C to +85°C) temperature range.

For a 10-bit, pin-compatible upgrade, refer to the MAX1180 data sheet. With the N.C. pins of the MAX1198 internally pulled down to ground, this ADC becomes a drop-in replacement for the MAX1180.



Applications

  • Baseband I/Q Sampling
  • Battery-Powered Applications
  • Instrumentation
  • MMDS Modems
  • Mul
