Analog Devices MAX11642 Product Info

• Analog Multiplexer with Track-and-Hold
  • 16 Channels (MAX11642/MAX11643)
  • 8 Channels (MAX11638/MAX11639)
• Single Supply
  • 2.7V to 3.6V (MAX11639/MAX11643)
  • 4.75V to 5.25V (MAX11638/MAX11642)
• Internal Reference
  • 2.5V (MAX11639/MAX11643)
  • 4.096V (MAX11638/MAX11642)
• External Reference: 1V to V_DD
• 16-Entry First-In/First-Out (FIFO)
• Scan Mode, Internal Averaging, and Internal Clock
• Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Over Temperature
• 10MHz 3-Wire SPI-/QSPI-/MICROWIRE-Compatible Interface
• Small Packages
  • 16-Pin QSOP (MAX11638/MAX11639)
  • 24-Pin QSOP (MAX11642/MAX11643)

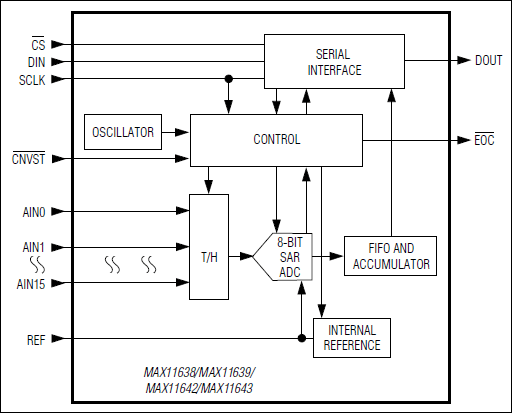

The MAX11638/MAX11639/MAX11642/MAX11643 are serial 8-bit analog-to-digital converters (ADCs) with an internal reference. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown™. The maximum sampling rate is 300ksps using an external clock. The MAX11642/MAX11643 have 16 input channels and the MAX11638/MAX11639 have 8 input channels. These four devices operate from either a +3V supply or a +5V supply, and contain a 10MHz SPI/QSPI™/MICROWIRE®-compatible serial port.

The MAX11638/MAX11639 are available in 16-pin QSOP packages. The MAX11642/MAX11643 are available in 24-pin QSOP packages. All four devices are specified over the extended -40°C to +85°C temperature range.

Applications

• Data Logging
• Data-Acquisition Systems
• Industrial Control Systems
• Instrumentation
• Patient Monitoring
• System Supervision
