Analog Devices MAX11152 Product Info

• High DC/AC Accuracy Improves Measurement Quality
  • 18-Bit Resolution with No Missing Codes
  • 500ksps Throughput Rates Without Pipeline Delay/Latency
  • 95dB SNR and -106dB THD at 10kHz
  • 1.65 LSB_RMS Transition Noise
  • ±0.5 LSB DNL (typ) and ±2 LSB INL (typ)
• Wide Supply Range Simplifies Power-Supply Design
  • 5V Analog Supply
  • 2.3V to 5V Digital Supply
  • 23mW Power Consumption at 500ksps
  • 10µA in Shutdown Mode
• Multi-Industry Standard Serial Interface and Small Package Reduce Size
  • SPI/QSPI^™/MICROWIRE^®/DSP-Compatible Serial Interface
  • 3mm x 5mm, Tiny 10-Pin µMAX Package

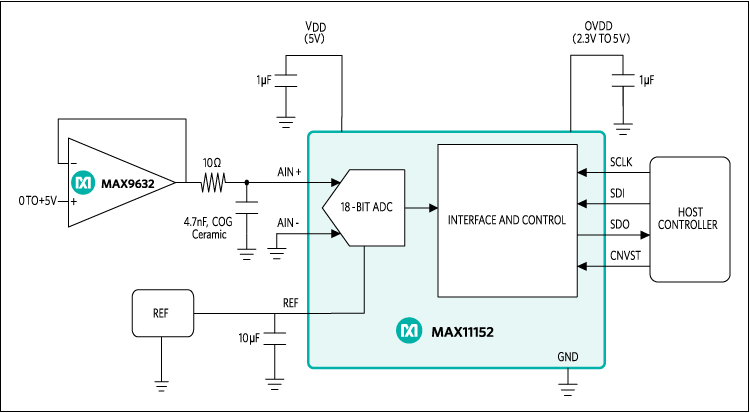

The MAX11152 is an 18-bit, 500ksps, +5V unipolar pseudo-differential input SAR ADC that offers excellent AC and DC performance in a small standard package.

This ADC typically achieves 95dB SNR, -106dB THD, and ±2 LSB INL, ±0.5 LSB DNL. The MAX11152 guarantees 18-bit no-missing codes.

The MAX11152 communicates using a SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.

The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11152 is offered in a 10-pin, 3mm x 5mm, µMAX^® package and is specified over the -40°C to +85°C temperature range.

Applications

• Automatic Test Equipment
• Medical Instrumentation
• Narrowband Receivers
• Process Control and Industrial Automation
• Test and Measurement
