Analog Devices MAX11100 Product Info

• 16-Bit Resolution, No Missing Codes
• +5V Single-Supply Operation
• Adjustable Logic Level (2.7V to 5.25V)
• Input Voltage Range: 0 to V_REF
• Internal Track-and-Hold, 4MHz Input Bandwidth
• SPI/QSPI/MICROWIRE-Compatible Serial Interface
• Small 10-Pin µMAX and WLP Packages
• Low Power
  • 2.45mA at 200ksps
  • 140µA at 10ksps
  • 0.1µA in Power-Down Mode

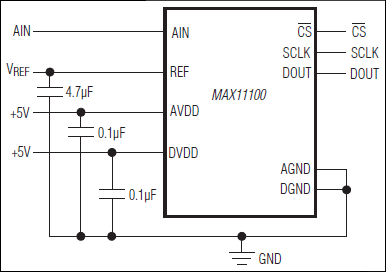

The MAX11100 low-power, 16-bit analog-to-digital converter (ADC) features a successive-approximation ADC, automatic power-down, fast 1.1µs wake-up, and a high-speed SPI/QSPI^™/MICROWIRE^®-compatible interface. The MAX11100 operates with a single +5V analog supply and features a separate digital supply, allowing direct interfacing with 2.7V to 5.25V digital logic.

At the maximum sampling rate of 200ksps, the MAX11100 typically consumes 2.45mA. Power consumption is typically 12.25mW (V_AVDD = V_DVDD = +5V) at a 200ksps (max) sampling rate. AutoShutdown^™ reduces supply current to 140µA at 10ksps and to less than 10µA at reduced sampling rates.

Excellent dynamic performance and low power, combined with ease of use and small package size (10-pin µMAX^® and 12-bump WLP), make the MAX11100 ideal for battery-powered and data-acquisition applications or for other circuits with demanding power consumption and space requirements.

Applications

• Accelerometer Measurements
• Data Acquisition
• Industrial I/O Modules
• Industrial Process Controls
• Motor Control
• Portable Battery-Powered Equipment
• Thermocouple Measurements
