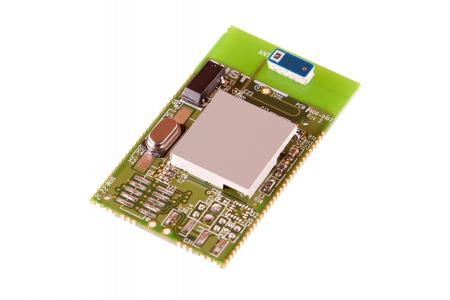

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP™5901-WHM is the SmartMesh WirelessHART mote product in the Eterna® family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software.
The LTP5901-WHM includes an onboard chip antenna and comes with modular RF certifications. Also available are the LTC5800-WHM Mote-on-Chip and the LTP5902-WHM module which includes an MMCX antenna connector.

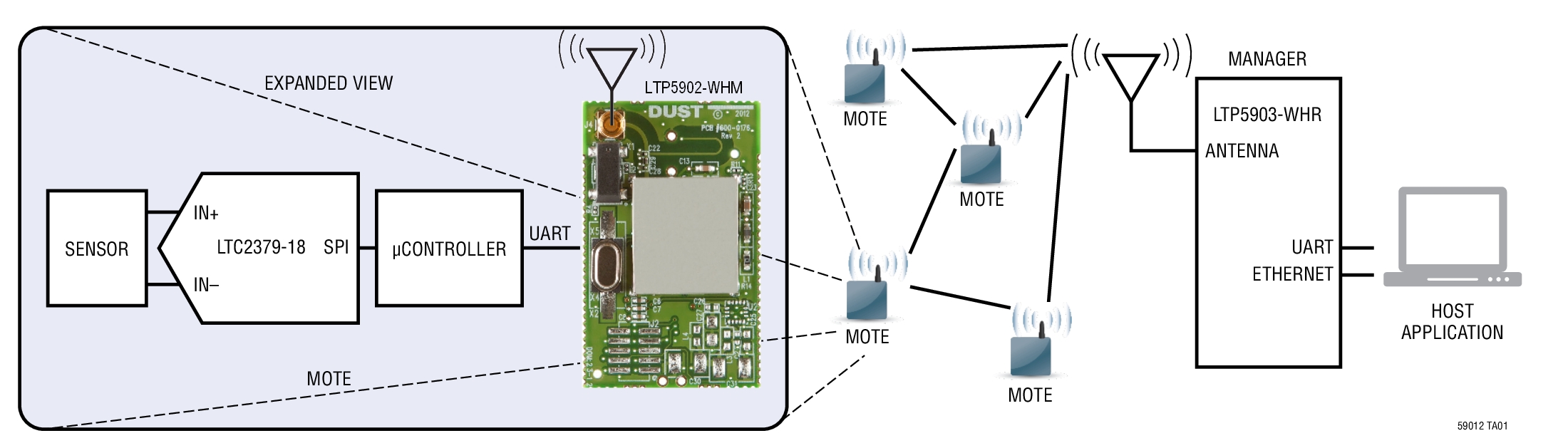

With Analog Devices' time-synchronized SmartMesh WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5901-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).
Network Features
| Features | Benefit |
| Time Synchronized Channel Hopping Communications | >99.999% network reliab
