LTM8067

RECOMMENDED FOR NEW DESIGNS

3VIN to 40VIN Isolated μModule DC/DC Converter

Analog Devices LTM8067 Product Info

10 February 2026 6

Features

2kVAC Isolated μModule Converter
UL60950 Recognized File 464570
Wide Input Voltage Range: 3V to 40V

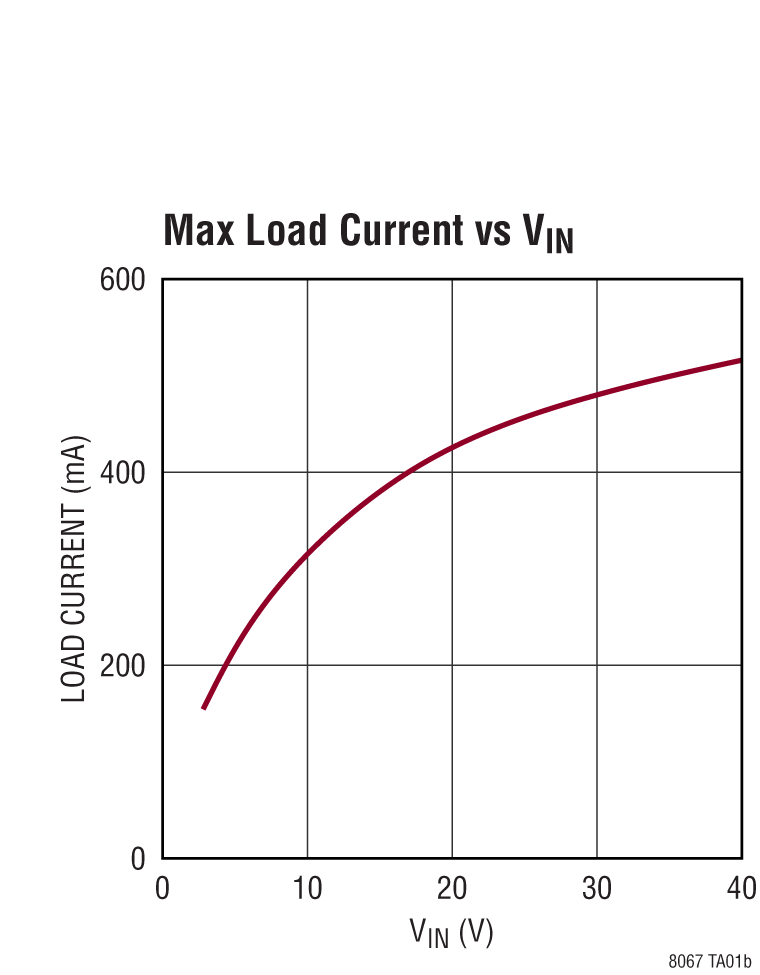

Up to 450mA Output Current (V_IN = 24V, V_OUT = 5V) Output Adjustable from 2.5V to 24V

Current Mode Control
User Configurable Undervoltage Lockout

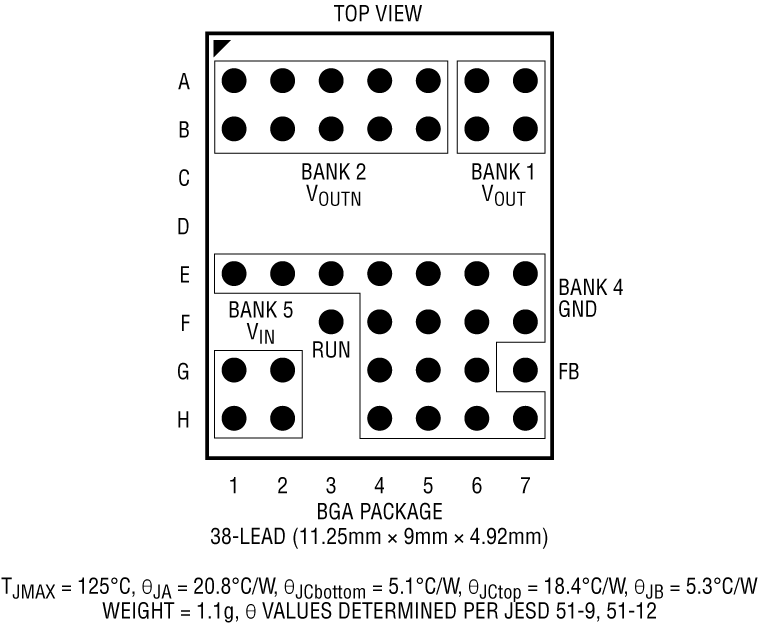

Low Profile (9mm × 11.25mm × 4.92mm) BGA Package

Part details & applications

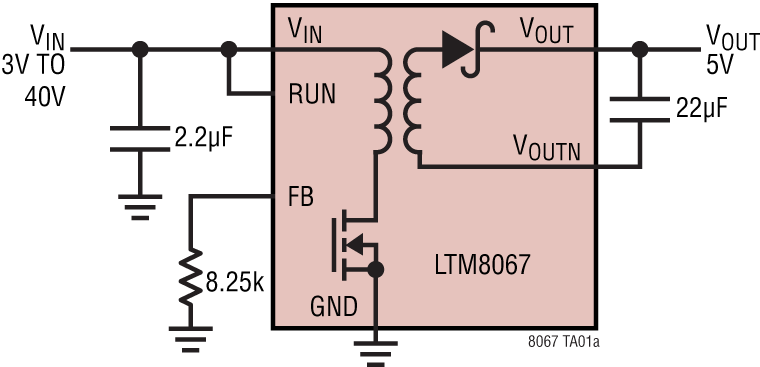

The LTM8067 is a 2kVAC isolated flyback μModule^® (power module) DC/DC converter. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3V to 40V, the LTM8067 supports an output voltage range of 2.5V to 24V, set by a single resistor. Only output and input capacitors are needed to finish the design.

The LTM8067 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8067 is available with SnPb or RoHS compliant terminal finish.

APPLICATIONS

Isolated IGBT Gate Drive
Industrial Sensors
Industrial Switches
Test and Measurement Equipment
