LTM8024

RECOMMENDED FOR NEW DESIGNS

40VIN, Dual 3.5A or Single 7A Silent Switcher μModule Regulator

Analog Devices LTM8024 Product Info

10 February 2026 5

Features

Two Complete Step-Down Switching Power Supplies
Low Noise Silent Switcher^® Architecture
CISPR22 Class B Compliant
Wide Input Voltage Range: 3V to 40V
Wide Output Voltage Range: 0.8V to 8V

3.5A Continuous Output Current Per Channel at 12V_IN, 3.3V_OUT, T_A = 80°C
Multiphase Parallel Operation to Increase Current
Selectable Switching Frequency: 200kHz to 3MHz

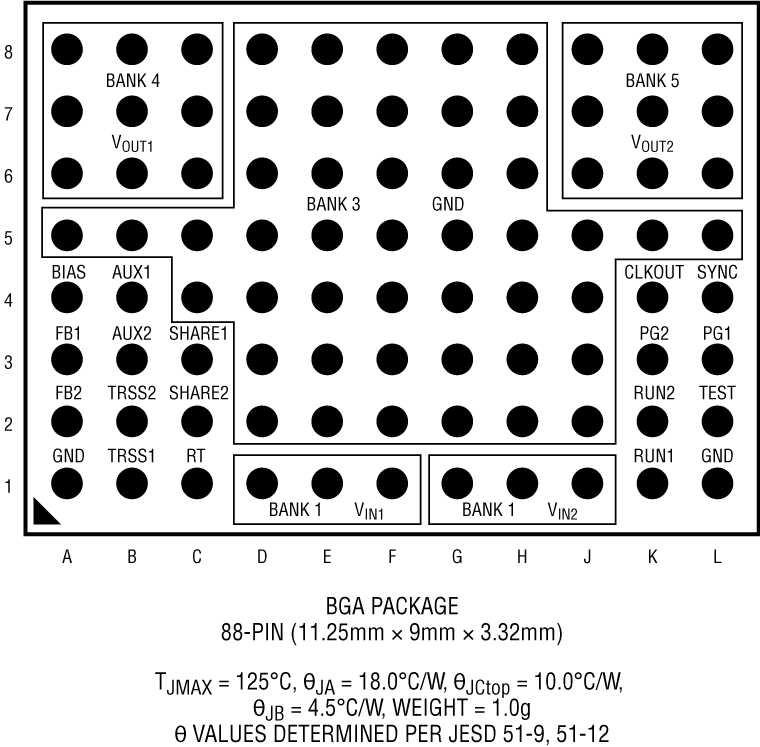

Compact Package (9mm × 11.25mm × 3.32mm) Surface Mount BGA

Part details & applications

The LTM8024 is 40V_IN, dual 3.5A or single 7A step-down Silent Switcher µModule^® regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8024 supports output voltages from 0.8V to 8V, and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. The LTM8024 product video is available on website.

The LTM8024 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 3.32mm) over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8024 is RoHS compliant.

Applications

Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
