Analog Devices LTC8043 Product Info

• Improved Direct Replacement for DAC-8043 and MAX543
• SO-8 Package with Standard Pinout

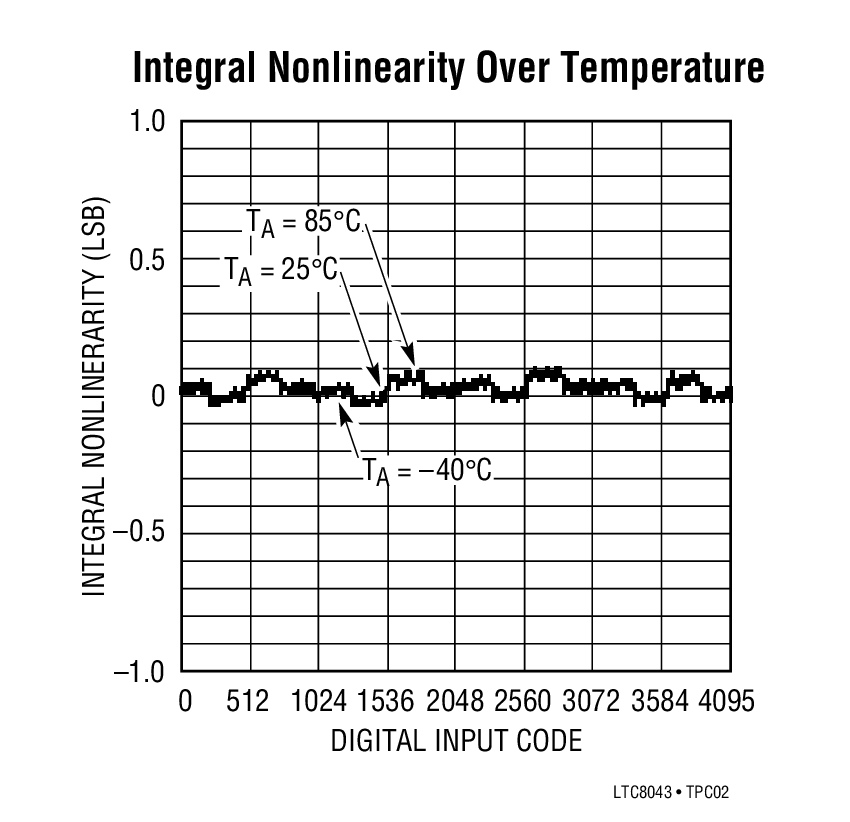

• DNL and INL Over Temperature: ±0.5LSB
• Easy, Fast and Flexible Serial Interface
• ±1LSB Maximum Gain Error
• 4-Quadrant Multiplication
• Low Power Consumption
• Low Cost

The LTC8043 is a serial-input 12-bit multiplying digital-to-analog converter (DAC). It is a superior pin compatible replacement for the DAC-8043. Improvements include better accuracy, better stability over temperature and supply variations, lower sensitivity to output amplifier offset, tighter timing specifications and lower output capacitance.

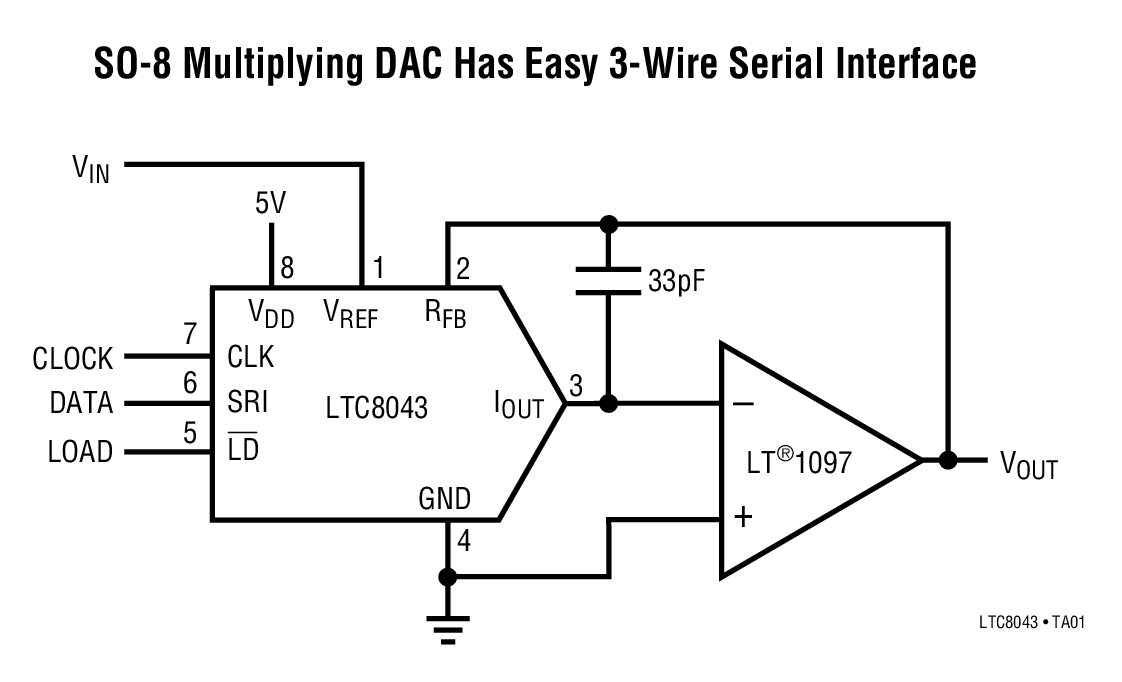

An easy-to-use 3-wire serial interface is well-suited to remote or isolated applications

The LTC8043 is extremely versatile. It can be used for 2-quadrant and 4-quadrant multiplying, programmable gain and single supply applications, such as noninverting voltage output mode.

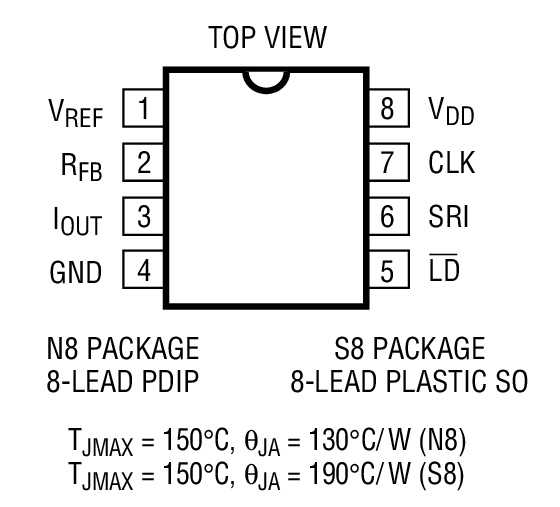

Parts are available in 8-pin SO and PDIP packages and are specified over the extended industrial temperature range, –40°C to 85°C.

Applications

• Process Control and Industrial Automation
• Remote Microprocessor-Controlled Systems
• Digitally Controlled Filters and Power Supplies
• Programmable Gain Amplifiers
• Automatic Test Equipment
