LTC7841

RECOMMENDED FOR NEW DESIGNS

Dual Phase Synchronous Boost Controller with PMBus Interface

Analog Devices LTC7841 Product Info

10 February 2026 6

Features

Wide V_IN Range: 4.5V to 60V
1% Total Output Voltage Accuracy Over Temperature at V_IN = 12V
PMBus Compliant Serial Interface:

Programmable V_OUT: Up to 60V with 0.2% Resolution
Read Back of Average and Peak Temperature, Current, and Voltage (25Hz Refresh Rate)
Fault Status

Phase-Lockable Frequency: 75kHz to 850kHz

Less than 1ms Power-Up Time
Power Good Output Voltage Monitor
Internal LDO Powers Gate Driver from VBIAS or EXTV_CC
Low Shutdown Current: I_Q < 10μA

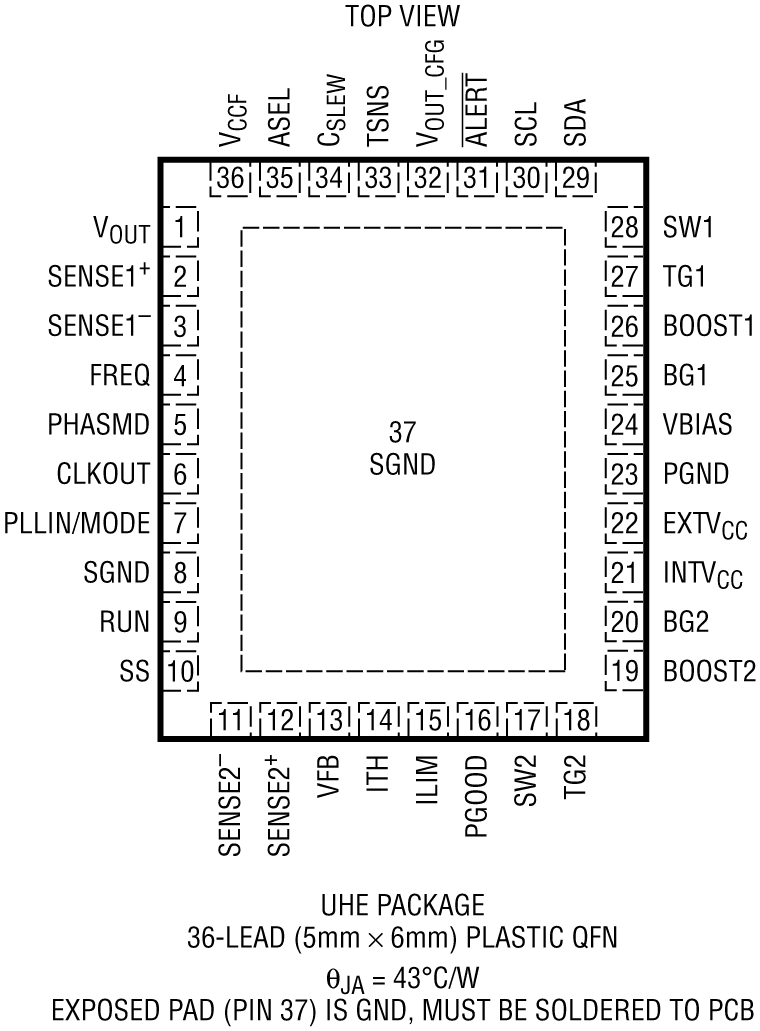

Available in a Thermally-Enhanced 5mm × 6mm QFN
AEC-Q100 Qualification In Progress

Part details & applications

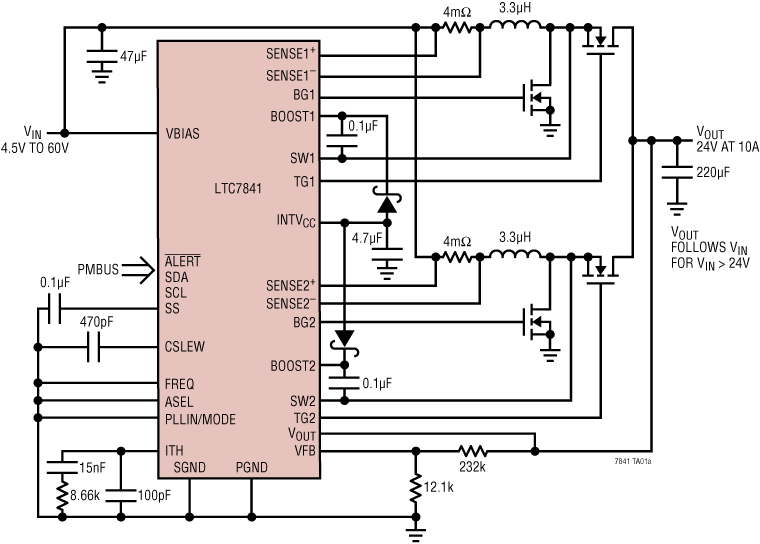

The LTC®7841 is a high performance dual phase single output synchronous boost converter controller that drives two N-channel power MOSFET stages out-of-phase. Multiphase operation reduces input and output capacitor requirements and allows the use of smaller inductors than the single-phase equivalent. Synchronous rectification increases efficiency, reduces power loss and eases thermal requirements, enabling high power boost applications. The output voltage can be adjusted up to 60V with 0.2% resolution via a PMBus-compliant serial interface. The serial interface can also be used to read back fault status, input/output current, input/output voltage and temperature. System configuration and monitoring is supported by the LTpowerPlay® development system.

Applications

Automotive Systems, Medical, Industrial
