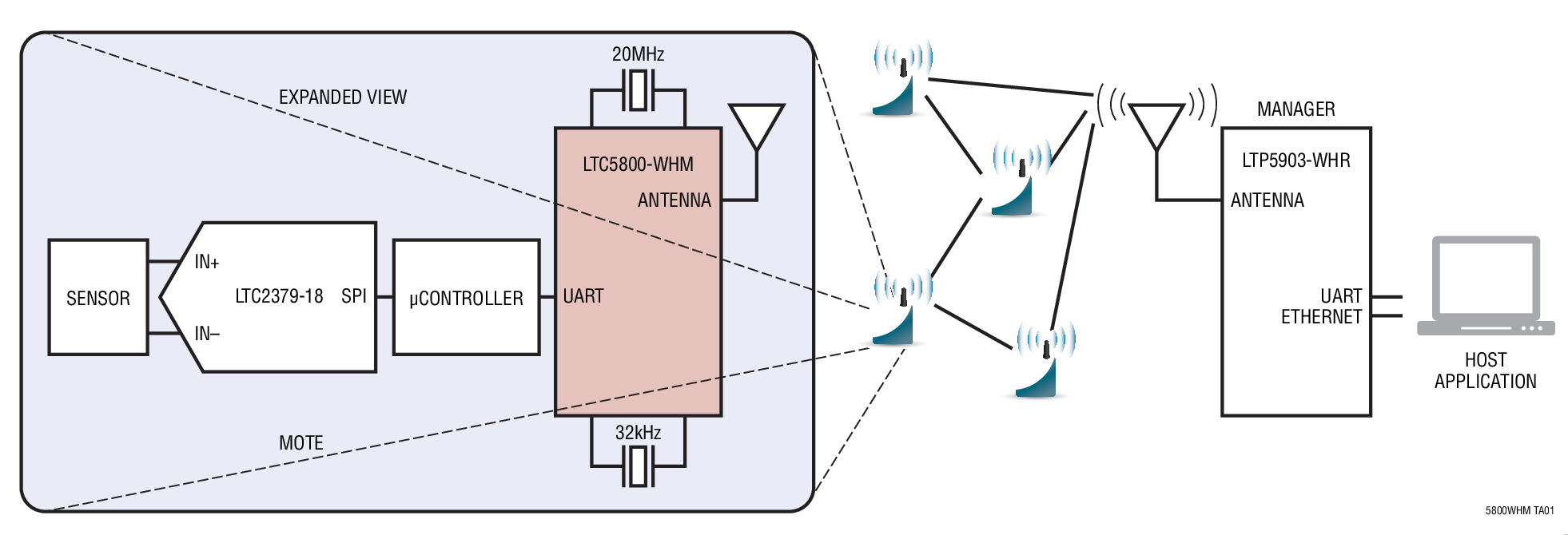

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTC5800-WHM is the WirelessHART Mote-on-Chip™ integrated circuit in the Eterna® family of IEEE 802.15.4 System-on-Chip (SoC) solutions, featuring a highly integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running our embedded SmartMesh WirelessHART networking software.
With Analog Devices' time-synchronized WirelessHART networks all motes in the network may route, source or terminate data while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTC5800-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface.
SmartMesh WirelessHART motes deliver a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.
| Network Features | |
| Feature | Benefit |
| Time Synchronized, Channel Hopping Communications | >99.999% network reliability in even the most challenging RF environments |
