LTC5582

PRODUCTION

40MHz to 10GHz RMS Power Detector with 57dB Dynamic Range

Analog Devices LTC5582 Product Info

10 February 2026 5

Features

Frequency Range: 40MHz to 10GHz
Linear Dynamic Range: Up to 57dB
Accurate RMS Power Measurement of High Crest Factor Modulated Waveforms
Exceptional Accuracy Over Temperature: ±0.5dB (Typ)

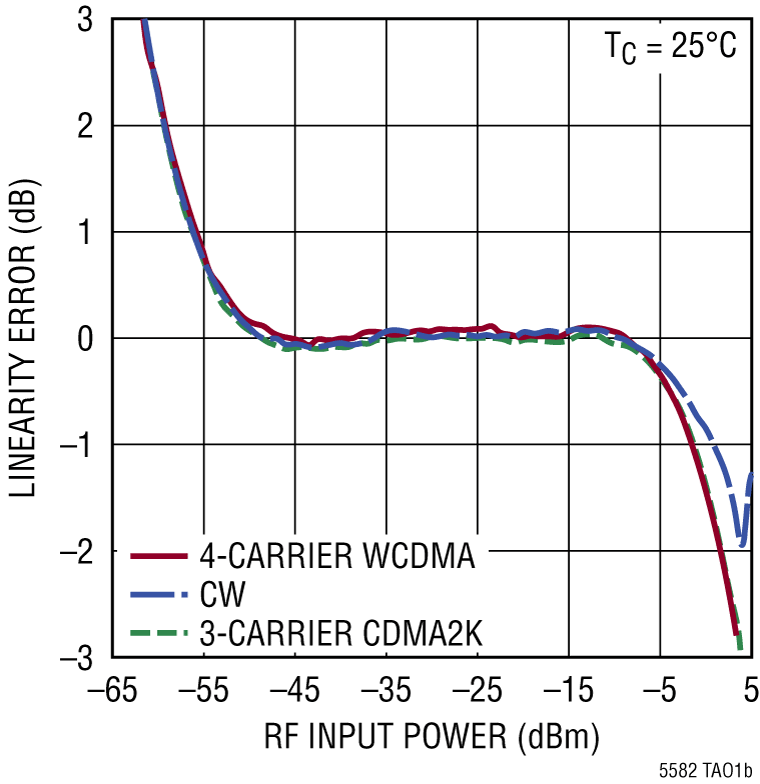

Low Linearity Error within Dynamic Range
Single-Ended or Differential RF Inputs
Fast Response Time: 90ns Rise Time
Low Supply Current: 41.6mA at 3.3V (Typ)

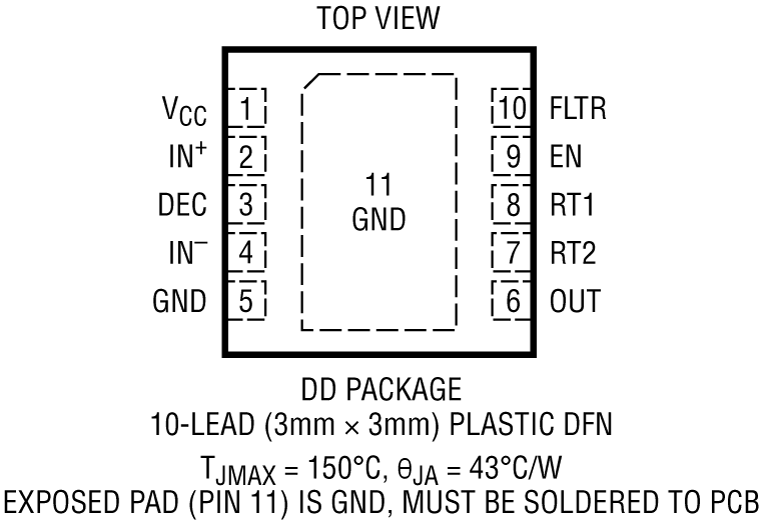

Small 3mm × 3mm DFN10
AEC-Q100 Qualified for Automotive Applications

Part details & applications

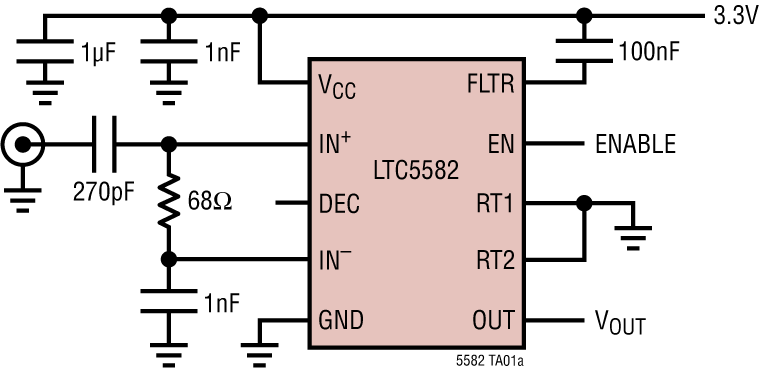

The LTC5582 is a 40MHz to 10GHz RMS responding power detector. It is capable of accurate power measurement of an AC signal with wide dynamic range, from –60dBm to 2dBm depending on frequency. The power of the AC signal in an equivalent decibel-scaled value is precisely converted into DC voltage on a linear scale, independent of the crest factor of the input signal waveforms. The LTC5582 is suitable for precision RF power measurement and level control for a wide variety of RF standards, including LTE, WiMAX, W-CDMA, CDMA2000, TD-SCDMA, and EDGE. The DC output is buffered with a low output impedance amplifier capable of driving a high capacitance load. Consult factory for more information. The part is packaged in a 10-lead 3mm × 3mm DFN. It is pin-to-pin compatible with the LT5570.

Applications

RMS Power Measurement
PA Power Control
Receive and Transmit Gain Control
LTE, WiMAX, W-CDMA, CDMA2K, TD-SCDMA, EDGE Basestations
Point-to-Point Microwave Links
RF Instrumentation
