Analog Devices LTC3852 Product Info

• Charge Pump Input Range: 2.7V to 5.5V
• Controller Input Range: 4V to 38V
• Integrated Charge Pump Provides 5V Gate Drive to Logic Level MOSFETs
• R_SENSE or DCR Current Sensing
• ±1.25% Output Voltage Accuracy Over Temperature
• Phase-Lockable Fixed Frequency: 250kHz to 750kHz
• Power Good Output Voltage Monitor
• Adjustable Soft-Start Voltage Ramping
• Current Foldback Disabled During Start-Up
• No Reverse Current During Soft-Start
• Selectable Constant Frequency, Pulse-Skipping, or Burst Mode Operation
• Output Overvoltage Protection
• Very Low Dropout Operation: 99% Duty Cycle

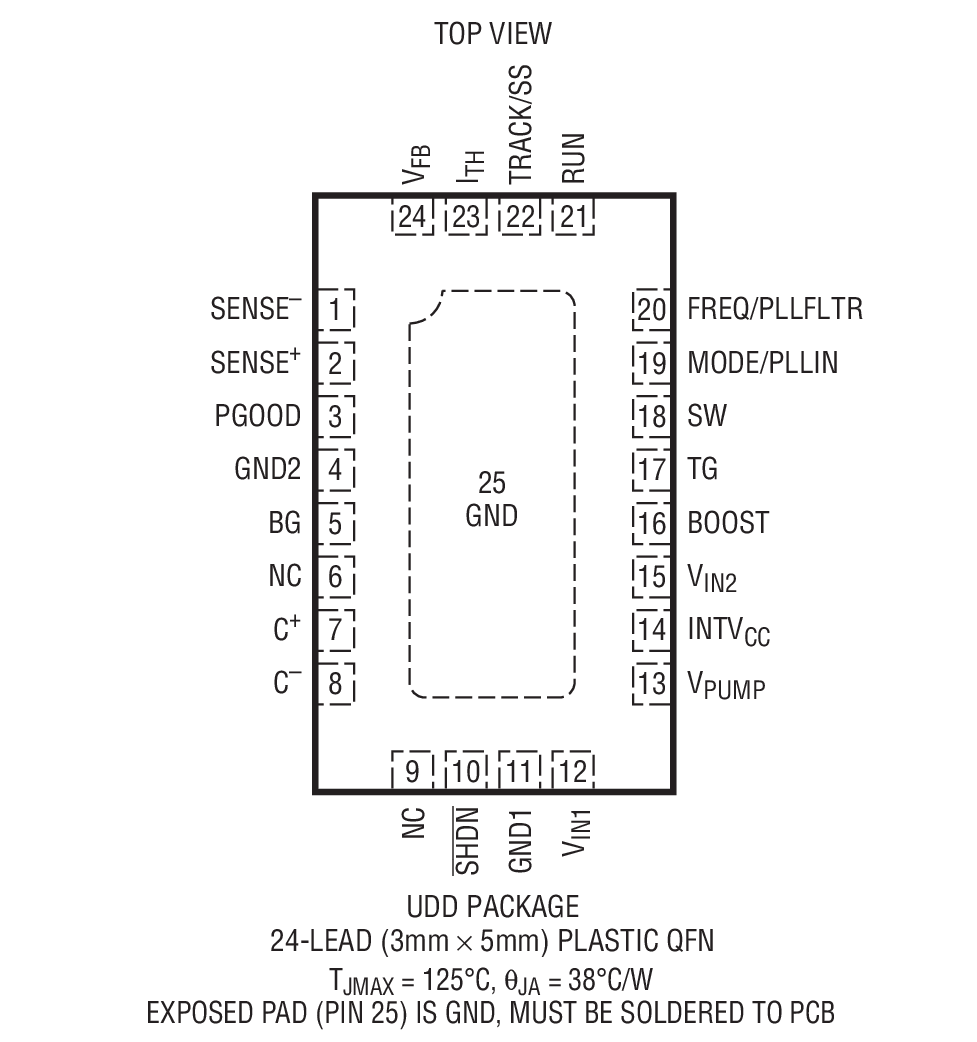

• Available in a 24-Lead (3mm × 5mm) QFN Package

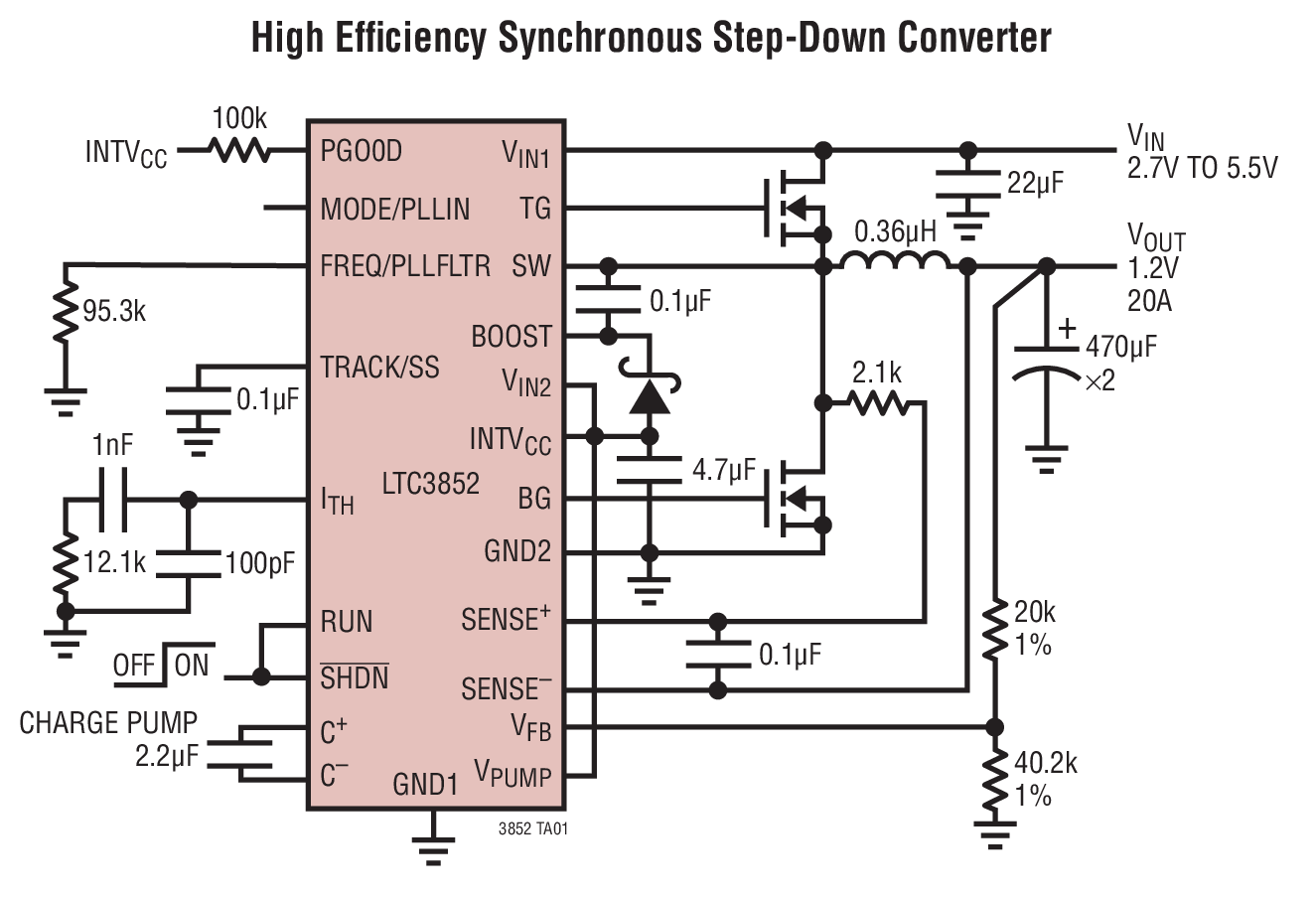

The LTC3852 is a constant frequency, current mode step-down DC/DC controller which can be powered by an on-board charge pump. Input supplies as low as 2.7V, when doubled by the charge pump, provide 5V to the LTC3852’s control logic and gate drives, supporting a wide selection of logic-level N-channel power MOSFETs.

The constant-frequency current mode architecture allows for a phase-lockable fixed frequency of up to 750kHz. The RUN pin provides a precision enable threshold while the TRACK/SS pin combines tracking and adjustable soft-start features.

The MODE/PLLIN pin selects among Burst Mode^® operation, pulse-skipping mode, and continuous current mode. Current foldback limits MOSFET power dissipation during short-circuit conditions. Reverse current and current foldback functions are disabled during soft-start. A power good output pin indicates when the output is within ±10% of its designed set point.

Applications

• General Purpose 3.3V Systems
• Lithium-Ion Powered Devices
• Distributed DC Power Systems
