LTC1871-7
  • LTC1871-7
  • LTC1871-7

LTC1871-7

PRODUCTION

High Input Voltage, Current Mode Boost, Flyback and SEPIC Controller

Analog Devices LTC1871-7 Product Info

10 February 2026 7

Features

  • Optimized for High Input Voltage Applications
  • Wide Chip Supply Voltage Range: 6V to 36V
  • Internal 7V Low Dropout Voltage Regulator Optimized for 6V-Rated MOSFETs
  • Current Mode Control Provides Excellent Transient Response
  • High Maximum Duty Cycle (92% Typ)
  • ±2% RUN Pin Threshold with 100mV Hysteresis
  • ±1% Internal Voltage Reference
  • Micropower Shutdown: IQ = 10µA
  • Programmable Operating Frequency (50kHz to 1MHz) with One External Resistor
  • Synchronizable to an External Clock Up to 1.3 × fOSC
  • User-Controlled Pulse Skip or Burst Mode® Operation
  • Output Overvoltage Protection
  • Can be Used in a No RSENSE™ Mode for VDS < 36V

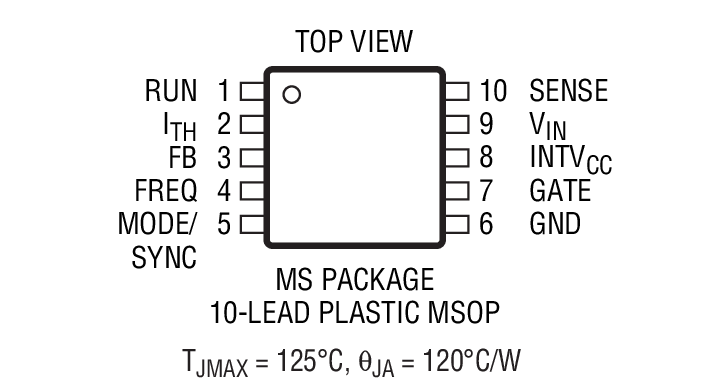

  • Small 10-Lead MSOP Package

Part details & applications

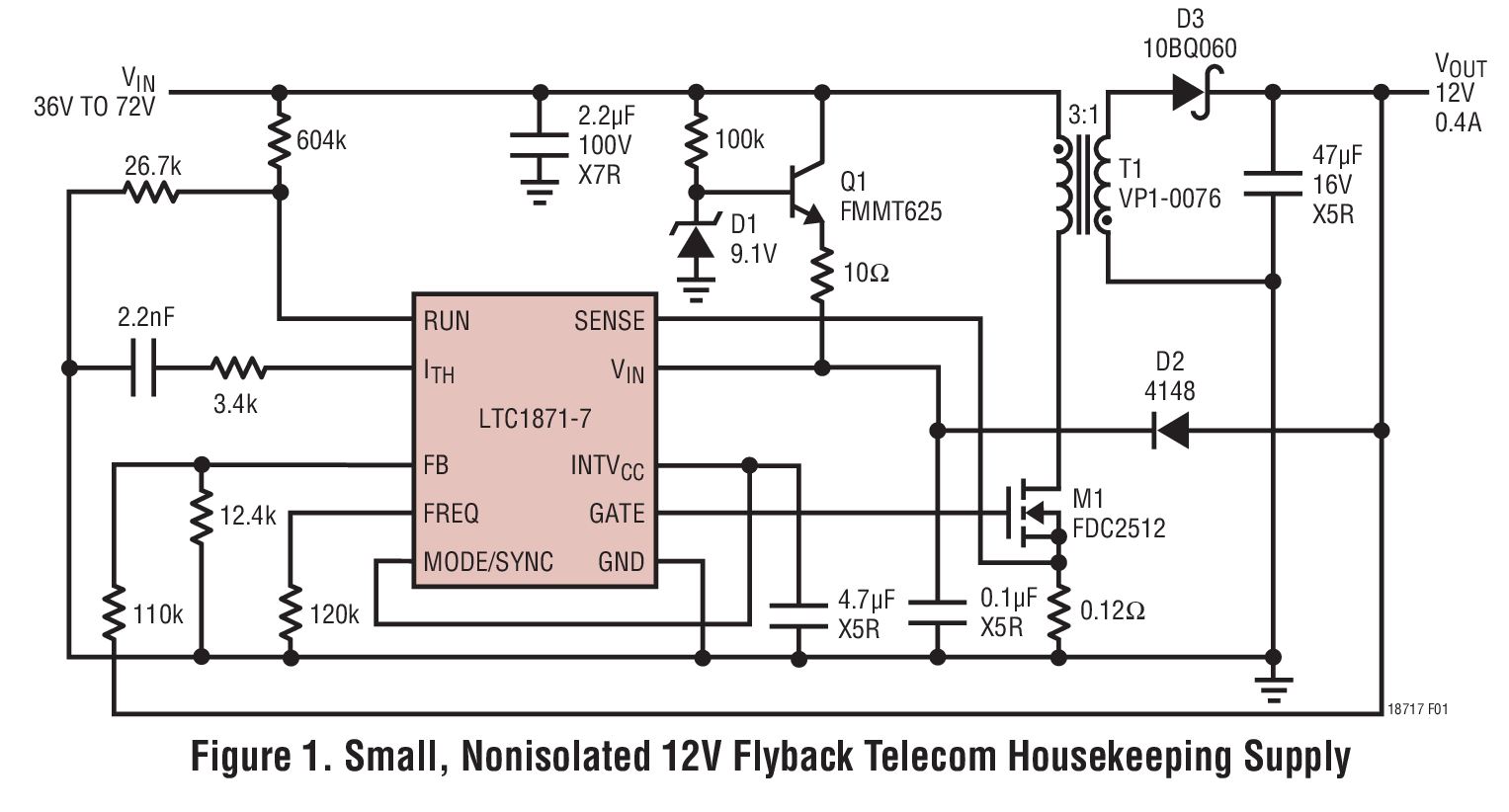

The LTC1871-7 is a current mode, boost, flyback and SEPIC controller optimized for driving 6V-rated MOSFETs in high voltage applications. The LTC1871-7 works equally well in low or high power applications and requires few components to provide a complete power supply solution. The switching frequency can be set with an external resistor over a 50kHz to 1MHz range, and can be synchronized to an external clock using the MODE/SYNC pin. Burst Mode operation at light loads, a low minimum operating supply voltage of 6V and a low shutdown quiescent current of 10µA make the LTC1871-7 well suited for battery-operated systems. For applications requiring constant frequency operation, Burst Mode operation can be defeated using the MODE/SYNC pin. The LTC1871-7 is available in the 10-lead MSOP package.

VIN Range INTVCC Features
LTC1871 2.5V to 36V 5.2V -
LTC1871-1
