Analog Devices LTC1706-82 Product Info

• Fully Compliant with the Intel VRM9.0/9.1 VID Specification
• Programs Regulator Output Voltage from 1.10V to 1.85V in 25mV Steps
• Programs ADI's Entire Family of DC/DC Converters
• ±0.25% Accurate Voltage Divider
• Built-In 40k Pull-Up Resistors on Program Inputs

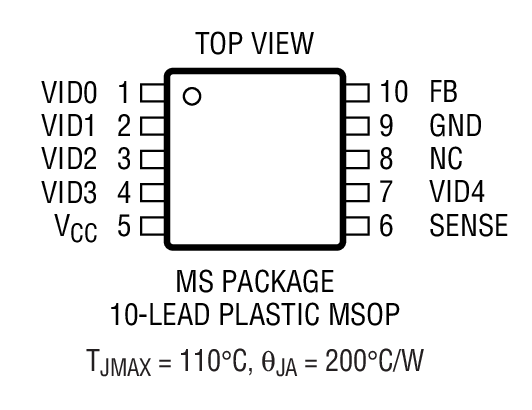

• Available in MSOP-10 Packaging

The LTC1706-82 is a precision, digitally programmed, resistive ladder which adjusts the output of any 0.8V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.10V and 1.85V is programmed in 25mV increments.

The LTC1706-82 is designed specifically to program ADI's entire family of DC/DC converters in full compliance with the Intel VRM9.0/9.1 specifications.

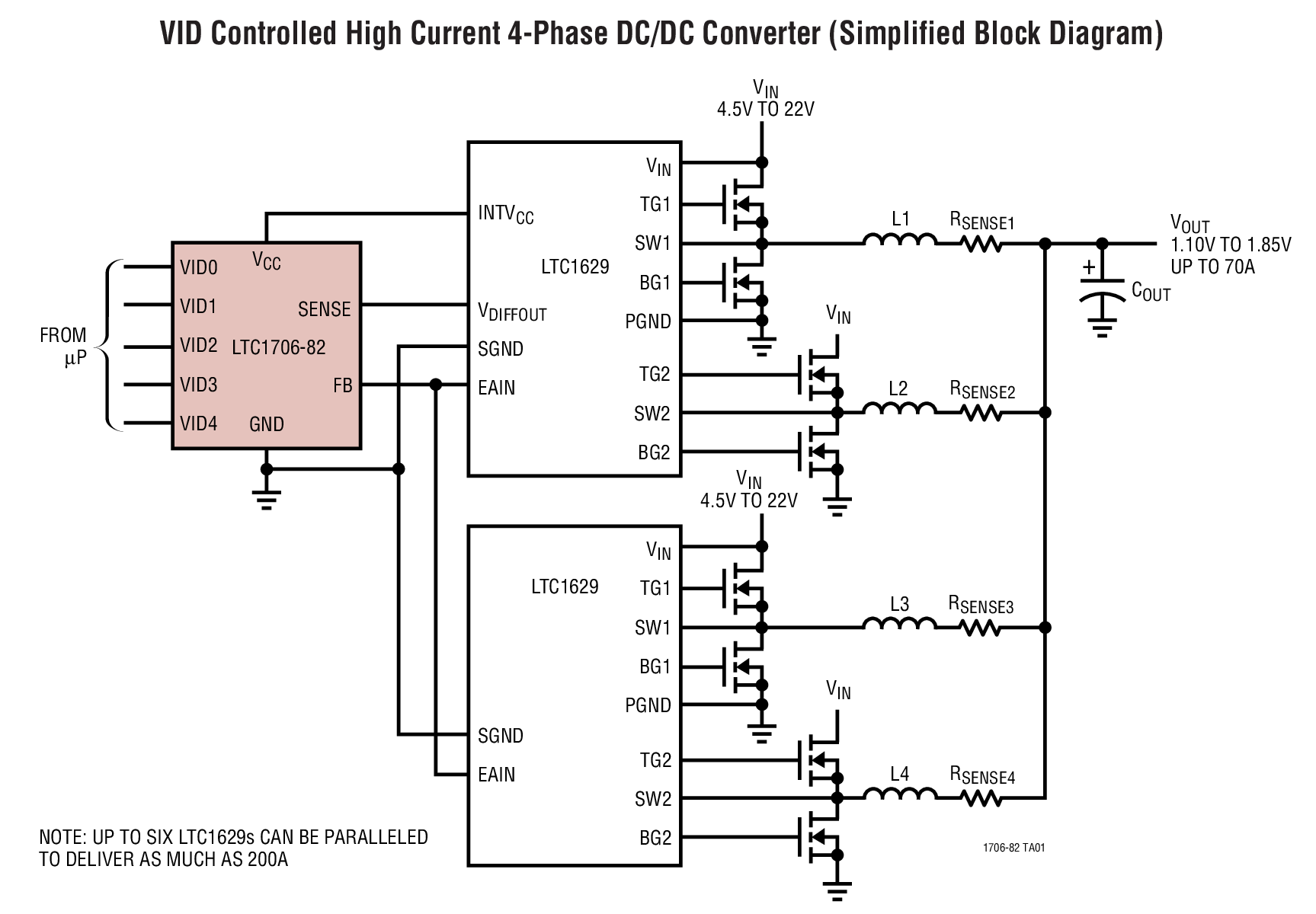

The LTC1706-82 programs the following ADI's DC/DC converters: LTC1628, LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1929 and LTC3729.

For a compact VRM9.0/9.1 solution with up to 60A capability, see the LTC3732, a 3-phase synchronous controller with integrated 5-bit VID and MOSFET drivers.

Applications

• Intel Pentium^® III Processor Power Supply
• Multiprocessor Workstations and Servers
• Multiphase Processor Power Supply
• AMD Athlon^™ Processor Power Supply
