LT8292

RECOMMENDED FOR NEW DESIGNS

60V Low IQ Full-Featured Synchronous Buck-Boost Controller

Analog Devices LT8292 Product Info

10 February 2026 5

Features

4-Switch Single Inductor Architecture that Allows V_IN Above, Below, or Equal to V_OUT
Proprietary Buck-Boost Peak Current Mode
Low Ripple Burst Mode: 30μA I_Q
Forced Continuous Mode or Pulse-Skipping Operation
Split Gate Driver Outputs
Selectable Dead Time Settings
Leaderless Current Sharing

Adjustable and Phase-lockable: 100kHz to 650kHz
Spread Spectrum Frequency Modulation
±2% Output Voltage Accuracy: 1V ≤ V_OUT ≤ 60V
±5% Input or Output Average Current Accuracy
Integrated Bootstrap Diodes
V_OUT Disconnected from V_IN During Shutdown

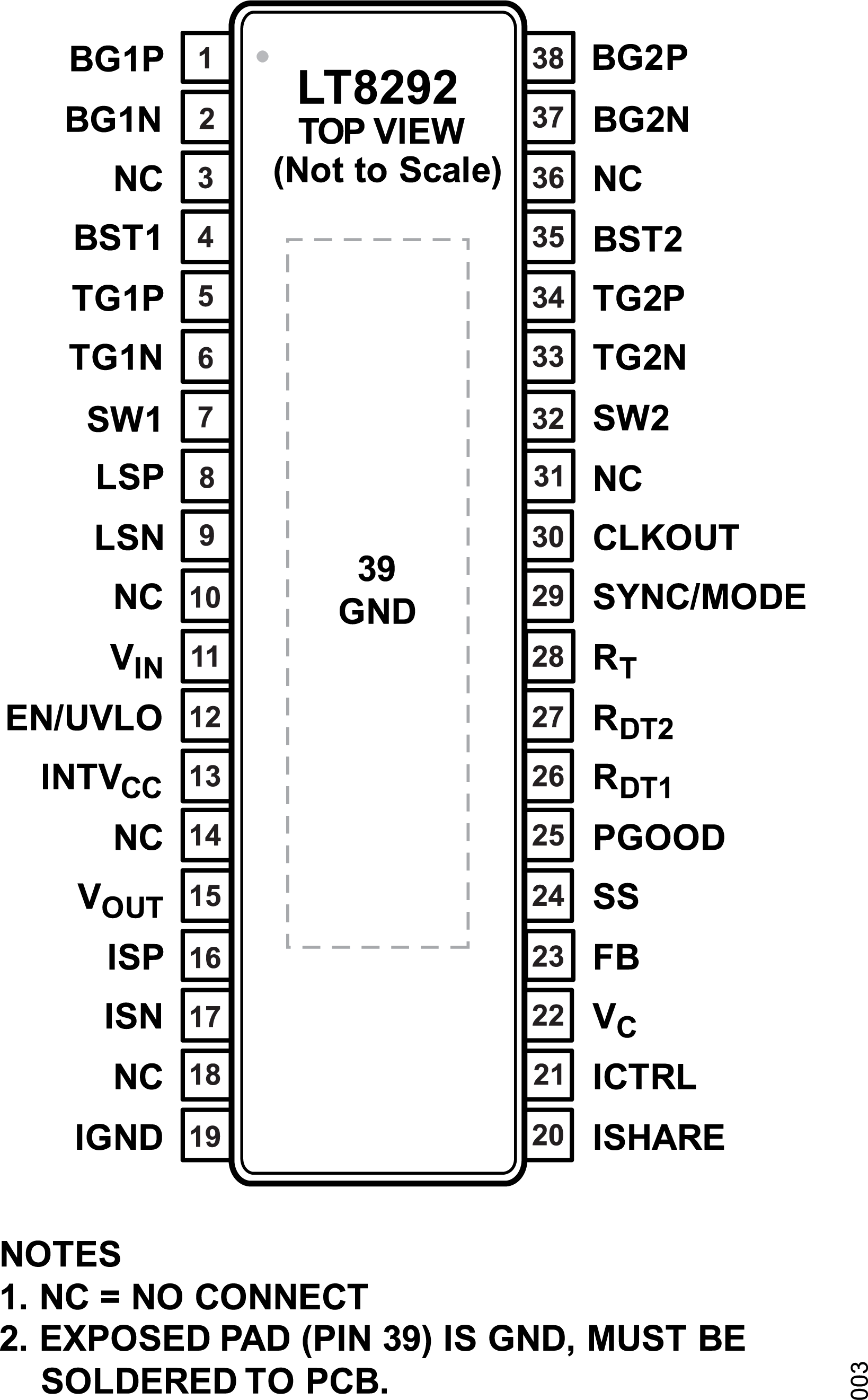

38-Lead Thin Shrink Small Outline Package (TSSOP) with Exposed Pad
Automotive Qualified

Part details & applications

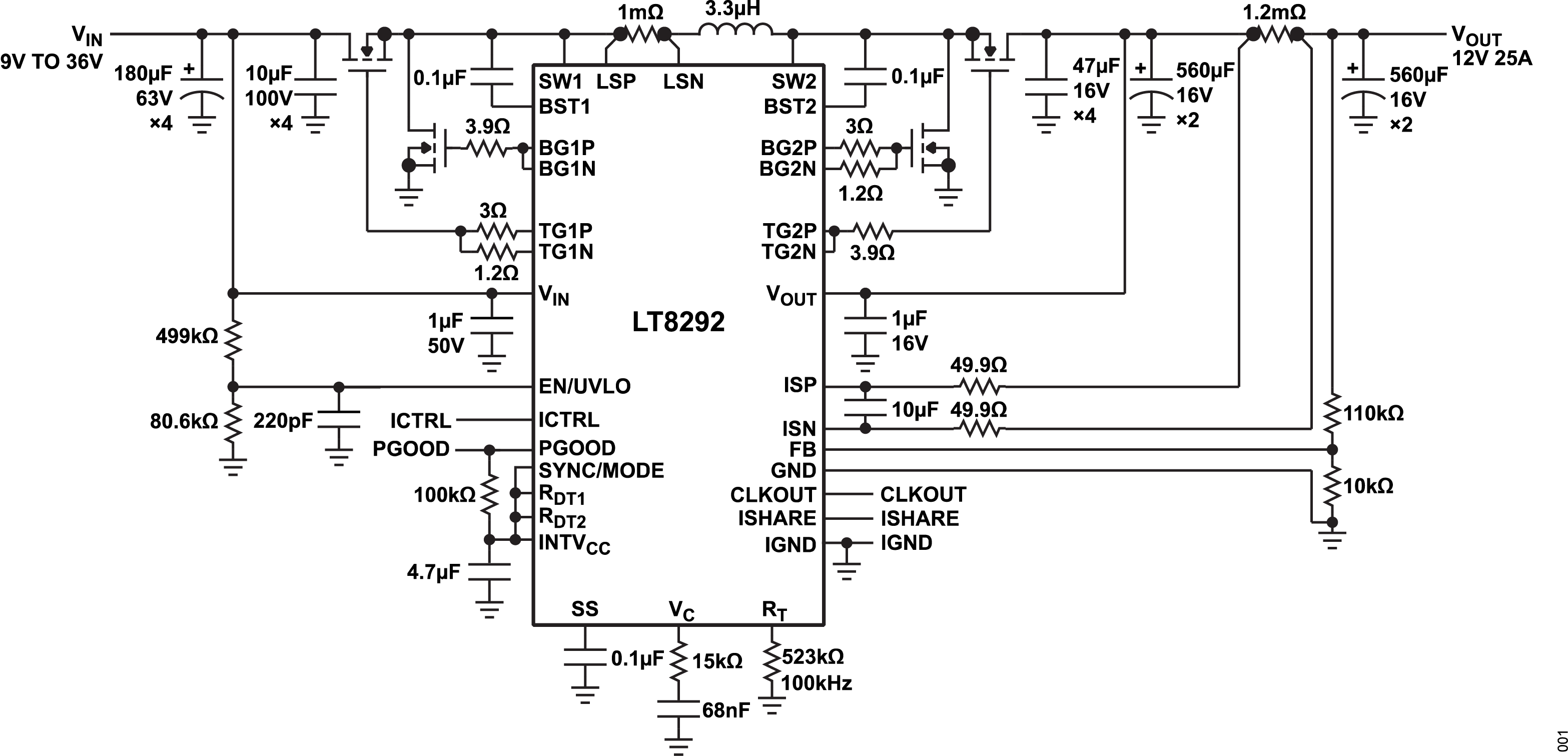

LT8292 is a synchronous 4-switch buck-boost controller that regulates output voltage and output or input current from an input voltage above, below, or equal to the output voltage. The proprietary buck-boost peak current mode architecture allows adjustable and phase-lockable 100kHz to 650kHz fixed frequency operation, or internal spread spectrum operation for low electromagnetic interference (EMI). When the output is regulated above 5V, the LT8292 can operate from an input supply as low as 3V after start-up.

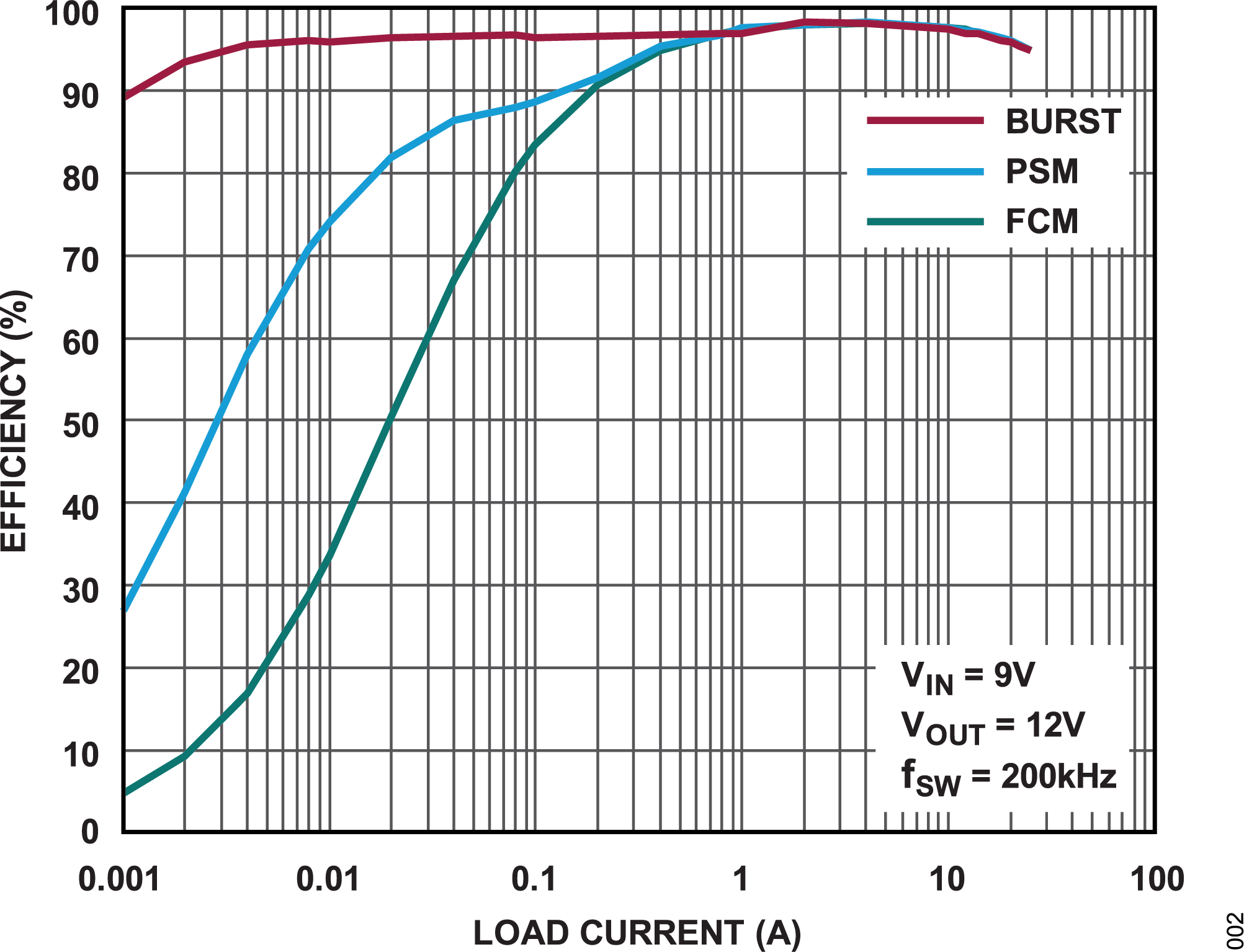

The low quiescent current at no-load extends operating run time in battery-powered systems. At light load, either forced continuous, pulse-skipping, or low-ripple Burst Mode can be selected.

The LT8292 features split pull-up/pull-down gate drivers and four selectable dead time settings with shootthrough protection, which allows both optimized efficiency and EMI. Fault protection is also provided to detect output short-circuit conditions, during which the LT8292 runs in low-duty cycle auto-retry mode.

APPLICATIONS

Automotive, Industrial, Telecom Systems
General Purpose Buck-Boost Power Supplies
High-Power Battery-Powered Systems
