LT3758

PRODUCTION

High Input Voltage, Boost, Flyback, SEPIC and Inverting Controller

Analog Devices LT3758 Product Info

10 February 2026 6

Features

Wide Input Voltage Range: 5.5V to 100V
Positive or Negative Output Voltage Programming with a Single Feedback Pin
Current Mode Control Provides Excellent Transient Response
Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor
Synchronizable to an External Clock

Low Shutdown Current < 1μA
Internal 7.2V Low Dropout Voltage Regulator
Programmable Input Undervoltage Lockout with Hysteresis
Programmable Soft-Start

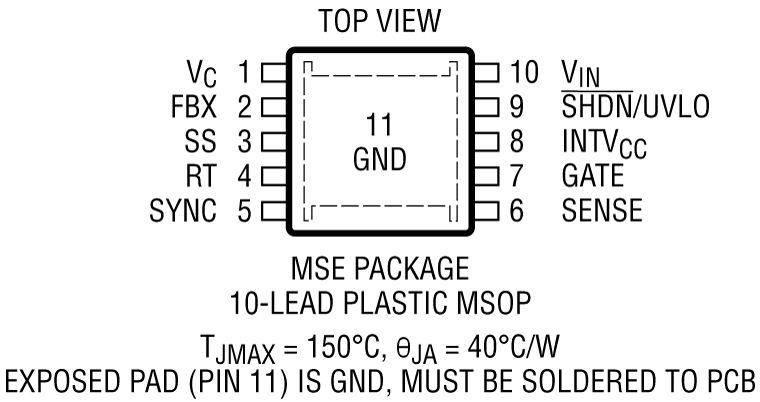

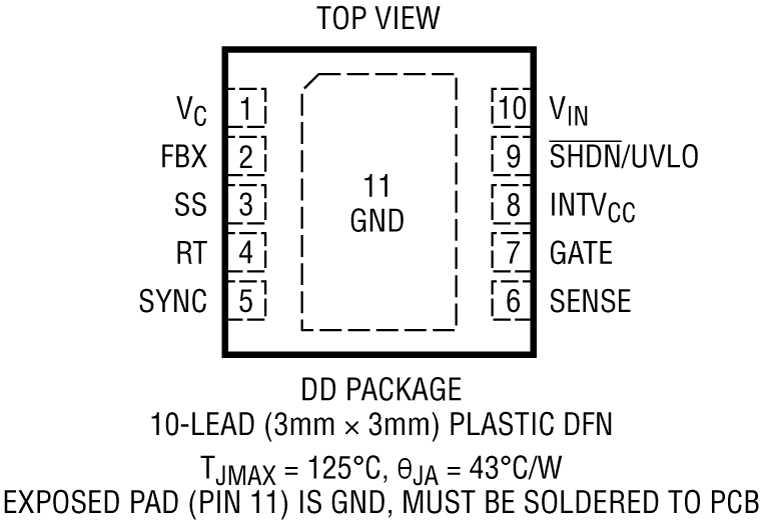

Small 10-Lead DFN (3mm × 3mm) and MSOPE Packages
AEC-Q100 Qualified for Automotive Applications

Part details & applications

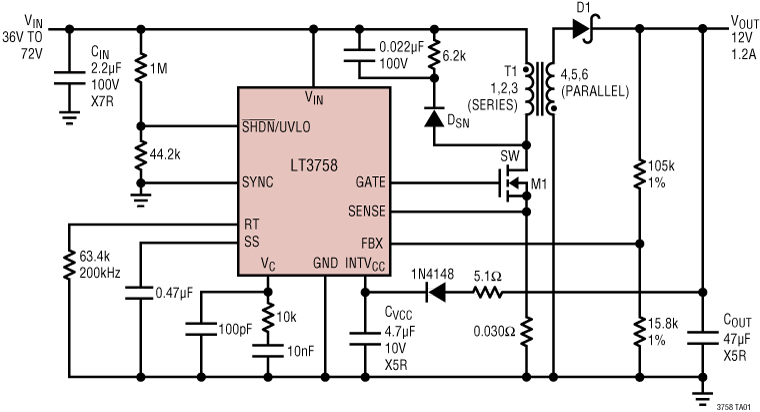

The LT3758/LT3758A are wide input range, current mode, DC/DC controllers which are capable of generating either positive or negative output voltages. They can be configured as either a boost, flyback, SEPIC or inverting converter. The LT3758/LT3758A drive a low side external N-channel power MOSFET from an internal regulated 7.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.

The operating frequency of LT3758/LT3758A can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 5.5V, and a low shutdown quiescent current of less than 1μA, make the LT3758/LT3758A ideally suited for batterypowered systems.

The LT3758/LT3758A feature soft-start and frequency foldback functions to limit inductor current during start-up and output short-circuit. The LT3758A has improved load transient performance compared to the LT3758.

APPLICATIONS

Automotive
Telecom
Industrial
