ICL7663

PRODUCTION

Programmable Positive Voltage Regulator Generates Temperature-Compensated Display-Drive Voltage for LCD

Analog Devices ICL7663 Product Info

10 February 2026 6

Features

Improved 2nd Source! (See 3rd page for "Maxim Advantage^TM").
1% Output Voltage Accuracy (ICL7663A)
Quiescent Current guaranteed over Temperature
Improved Temperature Coefficient of Output Voltage
40mA Output Current, with Current Limiting

1.5V to 16V Operating Range
Adjustable Output Voltage
Low Input-to-Output Voltage Drop
Monolithic, Low Power CMOS Design

Part details & applications

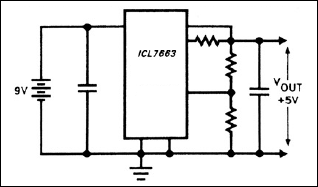

The Maxim ICL7663 is a high efficiency positive voltage regulator with a quiescent current of less than 10μA. The output voltage is set by two external resistors to any voltage in the 1.3-16V range, with an input voltage range of 1.5-16V. The ICL7663 is well suited for battery powered supplies, featuring low quiescent current, 40mA output current capability, low V_IN to V_OUT differential, and a logic input level shutdown control. In addition, the ICL7663 has a negative temperature coefficient output suitable for generating a temperature compensated display drive voltage for multiplexed LCD display systems.

The Maxim ICL7663A is an enhanced version of the ICL7663, with a 1% accurate voltage reference, which eliminates the need for trimming the output voltage in most applications.

The ICL7663B is a reduced input voltage range version limited to a maximum of 10V input.

APPLICATIONS

Handheld Instruments
LCD Display Module and Systems
Pagers
Remote Data Loggers
